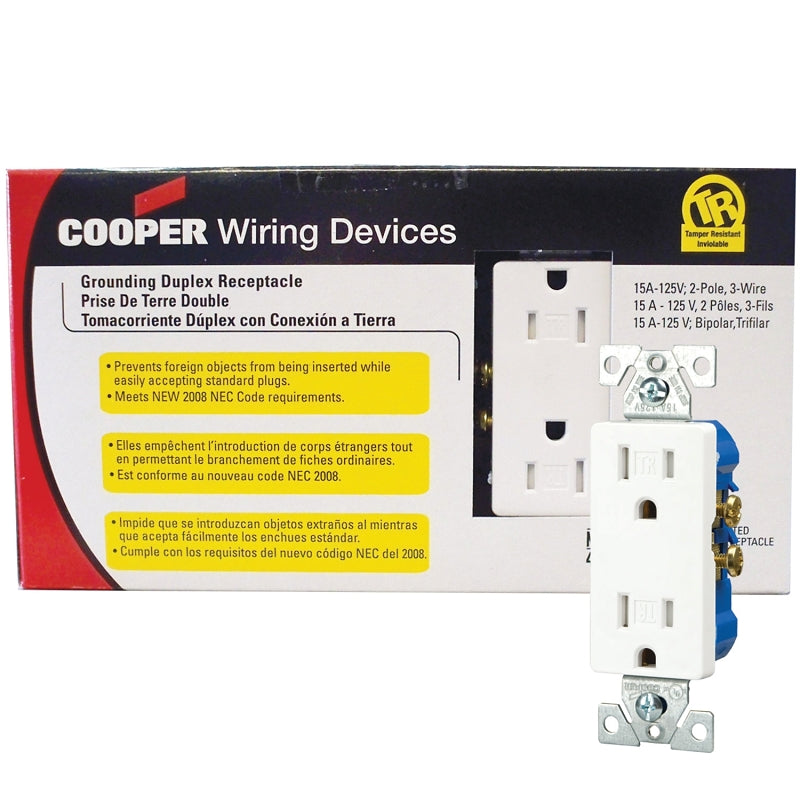

Eaton Wiring Devices TR1107W10 Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 V, Push-in, Side Wiring, NEMA: 5-15R

Provides compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. "TR" designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.
Unit: PK10
UPC: 032664749919
Model Number: TR1107W-10-L

• Color: White
• Current Rating: 15 A
• Dimensions: 4.2 in L x 1.30 in W x 0.69 in D
• Frequency Rating: 60 Hz
• Material: Nylon
• Mounting Type: Wall
• NEMA Configuration: 5-15R
• Number of Poles: 2
• Number Of Wires: 3
• Operating Temperature: -20 to 60 deg C
• Voltage Rating: 125 V
• Wire Size: 14 to 10 AWG
• Wiring Type: Push-in Side
