Eaton Wiring Devices  |  Our Item #: MORG9235573

Model Number: TR1107W - UPC : 032664666445

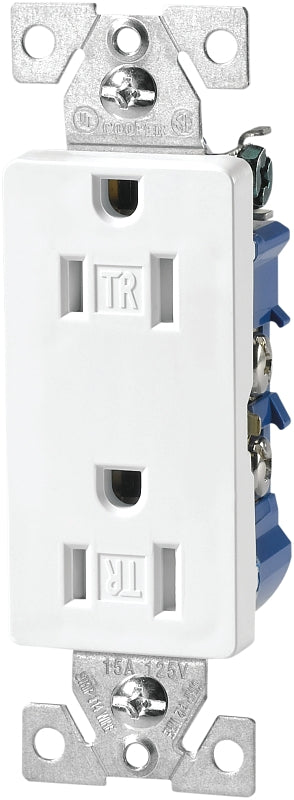

Eaton Wiring Devices TR1107W Duplex Receptacle, 15 A, 2-Pole, 5-15R, White

Get special pricing! Apply for a business account today.

Apply Now
$3.68 $4.59
Shipping calculated at checkout.
20% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A
  • TR designation provides visual identification
  • Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
  • Push-in terminals accept #14 AWG solid wire for quick installation
  • Double-wipe ground contacts ensure long term ground retention
  • Side wire terminals accept up to #10 AWG solid wire

Description
Provides compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. "TR" designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.
Unit: EA
UPC: 032664666445
Model Number: TR1107W

Additional Information

  • Color: White
  • Current Rating: 15
  • Dimensions: 42 in L x 130 in W x 069 in D
  • Frequency Rating: 60
  • Material: Nylon
  • Mounting Type: Wall
  • NEMA Configuration: 5-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -20 to 60
  • Voltage Rating: 125
  • Wire Size: 14 to 10
  • Wiring Type: Push-in Side
