Eaton Wiring Devices | Our Item #:
MORG2991453
Model Number: TRGF20BK - UPC : 032664013089

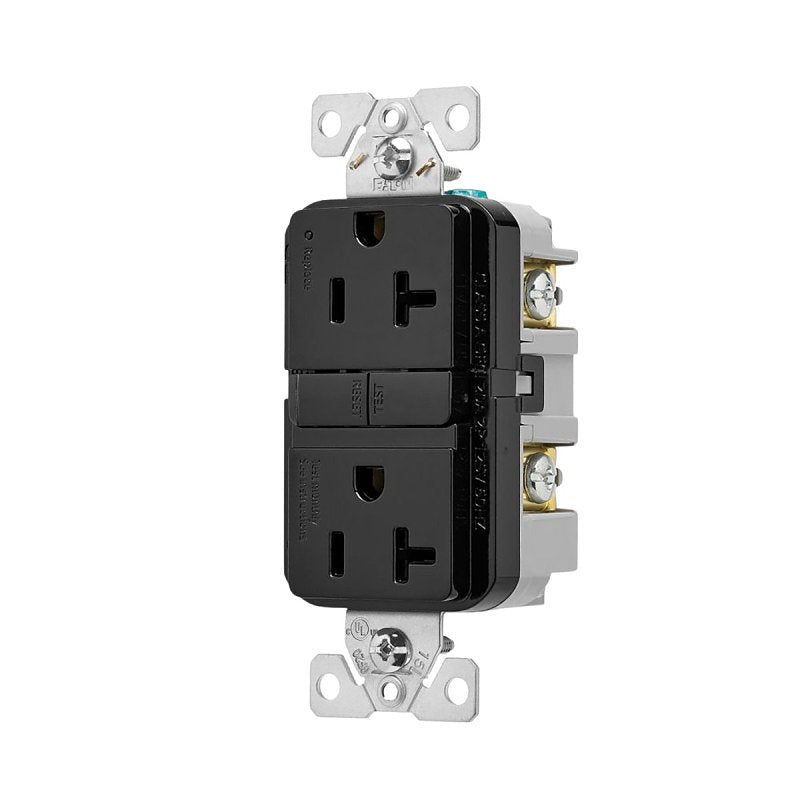

Eaton TRGF20BK Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, Black
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$25.88
Regular price
$29.85
Unit price
Unavailable
Shipping calculated at checkout.
13% off
Eaton TRGF20BK Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, Black is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton TRGF20BK Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, B...
Sale price
$25.88
Regular price
$29.85
Unit price
Unavailable
Eaton Wiring Devices | Our Item #:
MORG2991453
Sale price
$25.88
Regular price
$29.85
Unit price
Unavailable
Shipping calculated at checkout.
Eaton TRGF20BK Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, Black is backordered and will ship as soon as it is back in stock.
Features
- Slimmer design for easy installation, leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- Child-safety black tamper-resistant shutters help prevent improper insertion of foreign objects
- GFCIs incorporate lock-out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
- External backwire clamps provide visual confirmation of secure termination
- Line side terminals are backed out and staked for fast installation
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
- Intuitive LED status indicators for trip and end of life states
- Wider button wells for easy test and reset
Description
Description
Eaton Receptacle, Self-Test, Tamper-Resistant, 125 V, 20 A, Number of Poles: 2, Socket Type: GFCI, Short Circuit Current Rating: 10 kA, Grounding Type: Self-Grounding, Number of Wires: 3, Wire Size: 14 to 10 AWG, Wiring Type: Back, Side, NEMA Rating: 5-20R, Operating Temperature: -35 to 66 deg C, Polycarbonate/PVC/Thermoplastic, Black, Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
Unit: EA
UPC: 032664013089
Model Number: TRGF20BK
Unit: EA
UPC: 032664013089
Model Number: TRGF20BK
Additional Information
Additional Information
- Color: Black
- Current Rating: 20 A
- Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
- Grounding Type: Self-Grounding
- Material: Polycarbonate/PVC/Thermoplastic
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -35 to 66 deg C
- Short Circuit Current Rating: 10 kA
- Socket Type: GFCI
- Type: Self-Test Tamper-Resistant
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
