Cooper Wiring | Our Item #:
MORG2991305
Model Number: TRGF15SG-BX-L - UPC : 032664007972

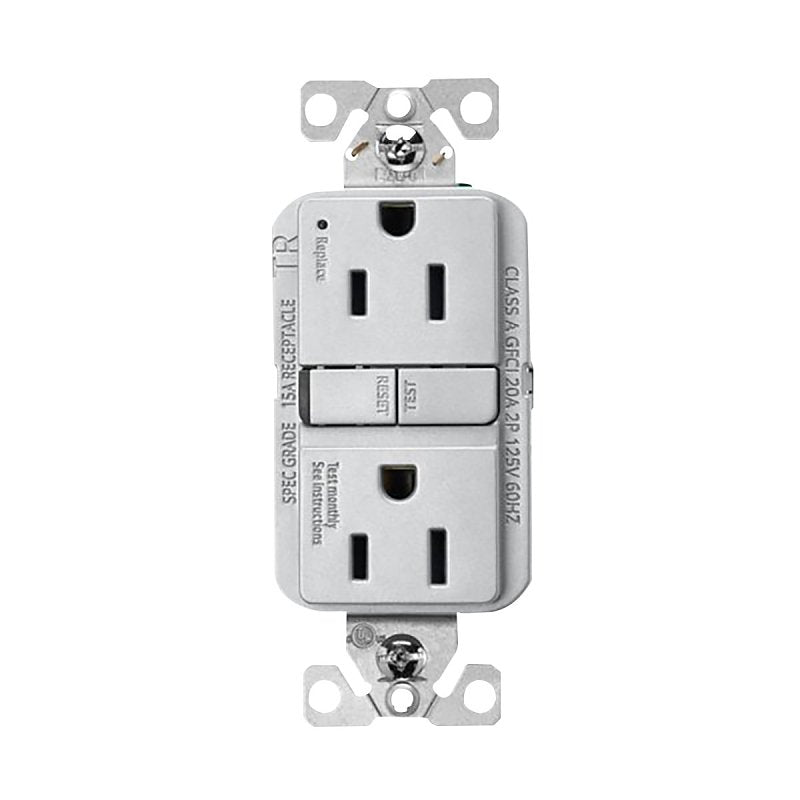

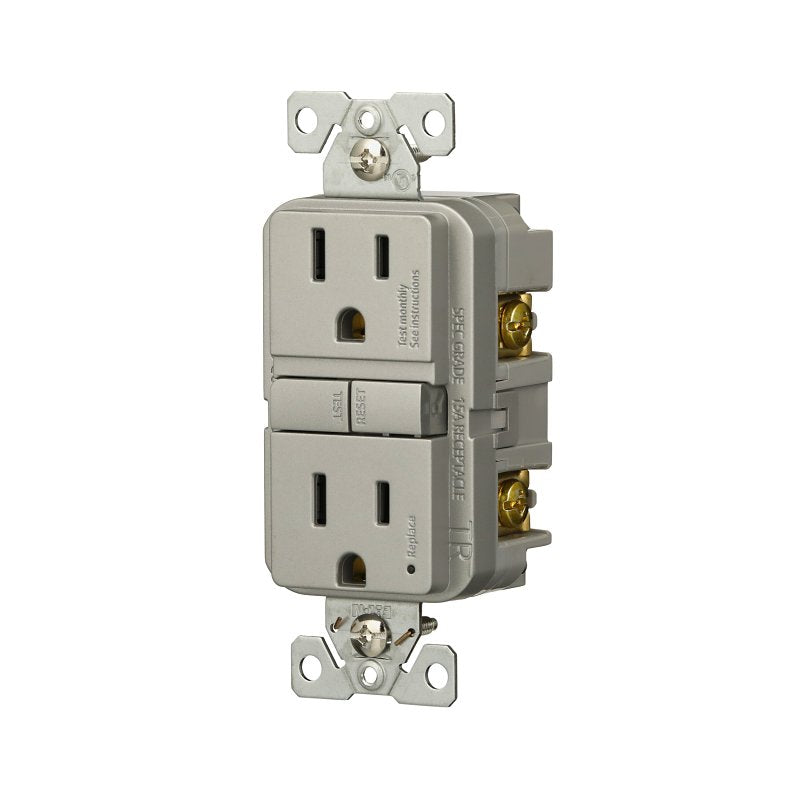

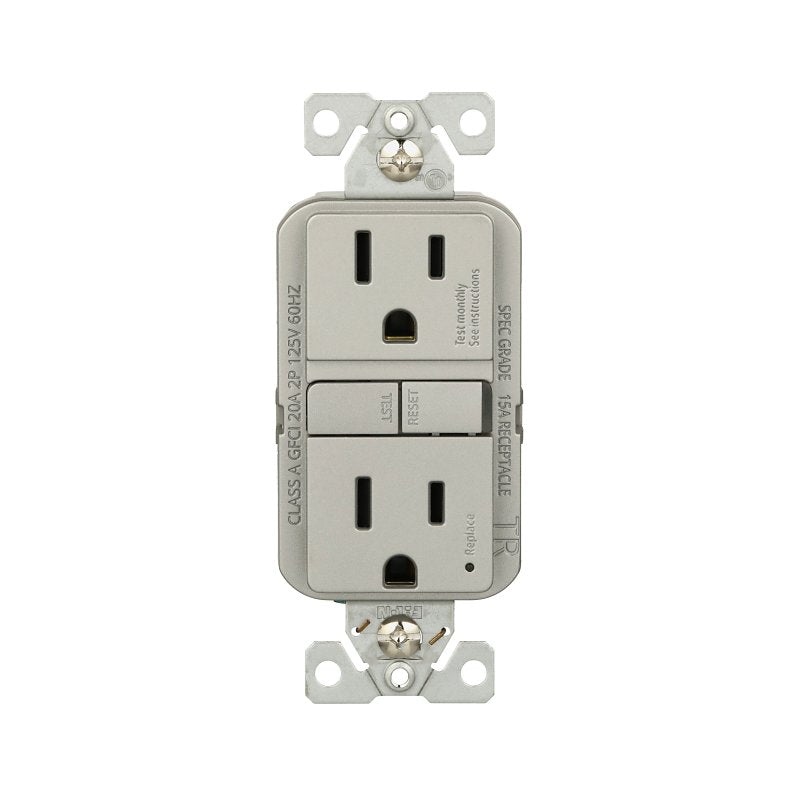

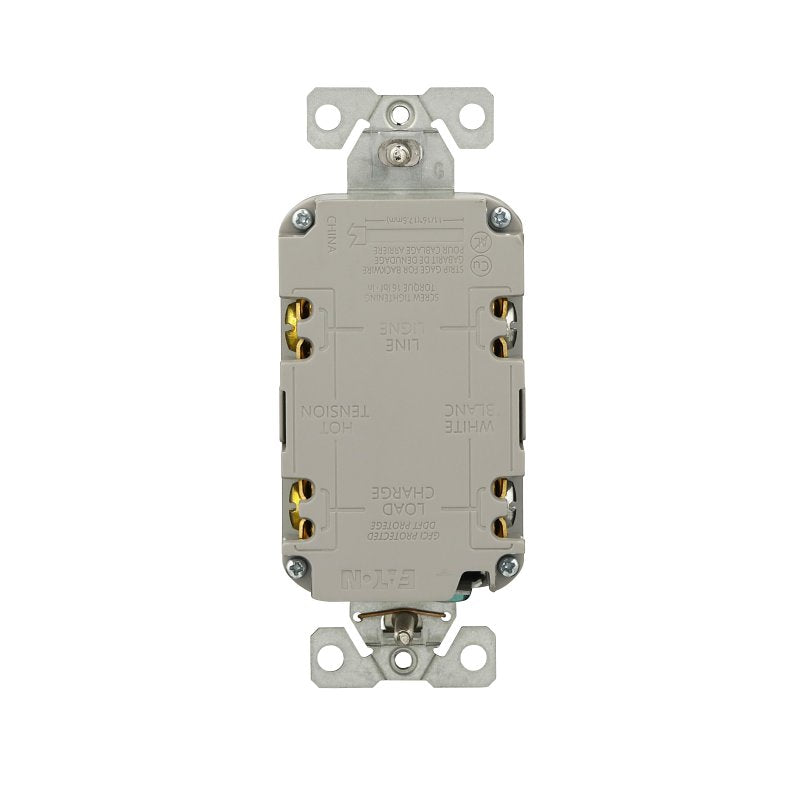

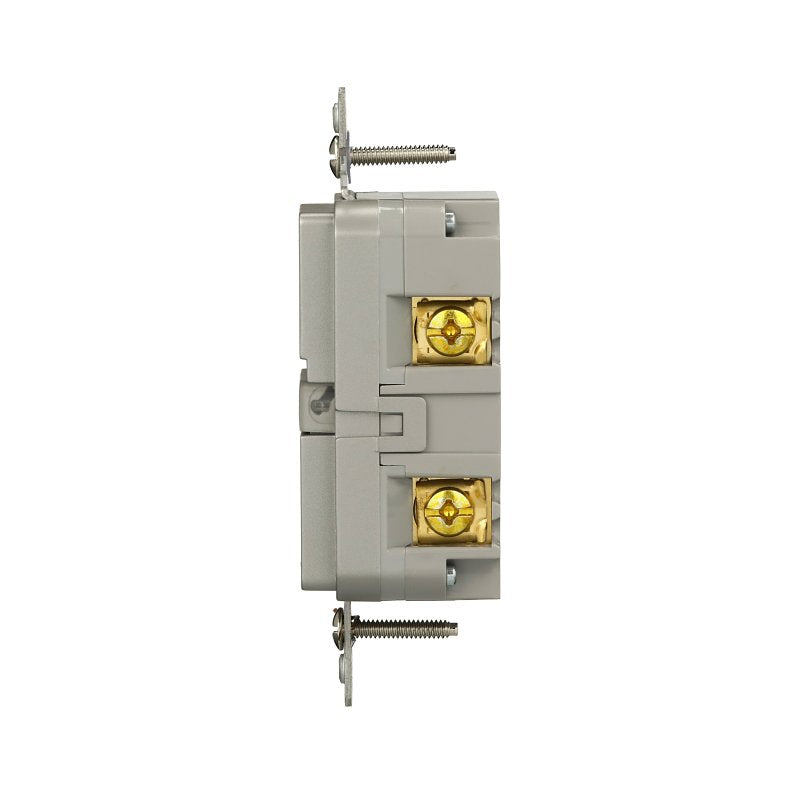

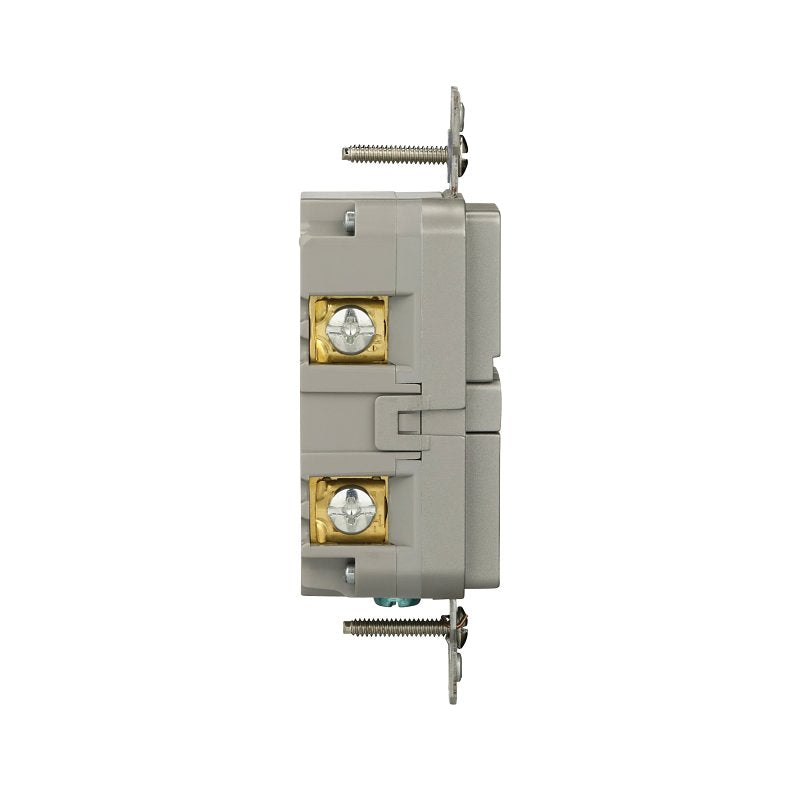

Eaton TRGF15SG-BX-L Self-Test GFCI Receptacle, 125 V, 15 A, NEMA: NEMA 5-15R, Back, Side Wiring, Silver Granite
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$25.86
Regular price
$29.85
Unit price
Unavailable
Shipping calculated at checkout.
13% off
Eaton TRGF15SG-BX-L Self-Test GFCI Receptacle, 125 V, 15 A, NEMA: NEMA 5-15R, Back, Side Wiring, Silver Granite is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton TRGF15SG-BX-L Self-Test GFCI Receptacle, 125 V, 15 A, NEMA: N...
Sale price
$25.86
Regular price
$29.85
Unit price
Unavailable
Cooper Wiring | Our Item #:
MORG2991305
Sale price
$25.86
Regular price
$29.85
Unit price
Unavailable
Shipping calculated at checkout.
Eaton TRGF15SG-BX-L Self-Test GFCI Receptacle, 125 V, 15 A, NEMA: NEMA 5-15R, Back, Side Wiring, Silver Granite is backordered and will ship as soon as it is back in stock.
Features
- Slimmer design for easy installation, leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- GFCIs incorporate lock out functionality to protect against mis-wired line load connections and GFCI circuitry damage
- Wider button wells for easy test and reset
- Intuitive LED status indicators for trip and end of life states
- Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
- Meets and exceeds 10 kA short-circuit testing and underwriters laboratories
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- External back wire clamps provide visual confirmation of secure termination
- Line side terminals are backed out and staked for fast installation
Description
Description
Eaton Self-Test GFCI Receptacle, 125 V, 15 A, Number of Poles: 2, Short Circuit Current Rating: 10 kA, Grounding Type: Automatic, Number of Wires: 3, Wire Size: 14 to 10 AWG, Wiring Type: Back, Side, NEMA Rating: NEMA 5-15R, Operating Temperature: -35 to 66 deg C, Polycarbonate/Steel/Thermoplastic/PVC, Silver Granite, Dimensions: 4.19 in H x 1.69 in W
Unit: EA
UPC: 032664007972
Model Number: TRGF15SG-BX-L
Unit: EA
UPC: 032664007972
Model Number: TRGF15SG-BX-L
Additional Information
Additional Information
- Color: Silver Granite
- Current Rating: 15 A
- Dimensions: 4.19 in H x 1.69 in W
- Grounding Type: Automatic
- Material: Polycarbonate/Steel/Thermoplastic/PVC
- Nema Rating: NEMA 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -35 to 66 deg C
- Short Circuit Current Rating: 10 kA
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
