Eaton Wiring Devices | Our Item #:
MORG7569197
Model Number: GF20W-BX-L - UPC : 032664007910

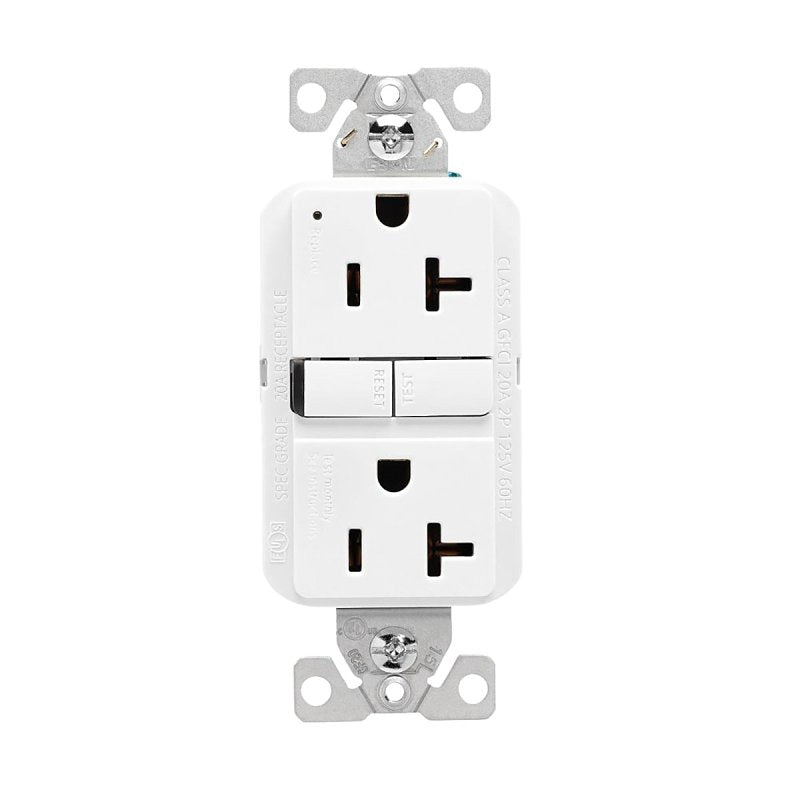

Eaton GF20W-BX-L Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, White, Pack of 10
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$216.65
Regular price
$249.50
Unit price
Unavailable
Shipping calculated at checkout.
13% off
Eaton GF20W-BX-L Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, White, Pack of 10 is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton GF20W-BX-L Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket,...
Sale price
$216.65
Regular price
$249.50
Unit price
Unavailable
Eaton Wiring Devices | Our Item #:
MORG7569197
Sale price
$216.65
Regular price
$249.50
Unit price
Unavailable
Shipping calculated at checkout.
Eaton GF20W-BX-L Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, White, Pack of 10 is backordered and will ship as soon as it is back in stock.
Features
- Slimmer design for easy installation, leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- GFCIs incorporate lock-out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
- Wider button wells for easy test and reset
- Intuitive LED status indicators for trip and end of life states
- Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
- Meets and exceeds 10 kA short circuit testing and Underwriters Laboratories (UL) UL943 safety standards
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- External backwire clamps provide visual confirmation of secure termination
- Line side terminals are backed out and staked for fast installation
Description
Description
Eaton Receptacle, Self-Test, Slim, 125 V, 20 A, Number of Poles: 2, Socket Type: GFCI, Short Circuit Current Rating: 10 kA, Grounding Type: Self-Grounding, Number of Wires: 3, Wire Size: 14 to 10 AWG, Wiring Type: Back, Side, NEMA Rating: 5-20R, Operating Temperature: -35 to 66 deg C, Polycarbonate/PVC/Thermoplastic, White, Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
Unit: EA
UPC: 032664007910
Model Number: GF20W-BX-L
Unit: EA
UPC: 032664007910
Model Number: GF20W-BX-L
Additional Information
Additional Information
- Color: White
- Current Rating: 20 A
- Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
- Grounding Type: Self-Grounding
- Material: Polycarbonate/PVC/Thermoplastic
- Nema Rating: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -35 to 66 deg C
- Short Circuit Current Rating: 10 kA
- Socket Type: GFCI
- Type: Self-Test Slim
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
