Cooper Wiring | Our Item #:
MORG7491848
Model Number: GF20BK - UPC : 032664012372

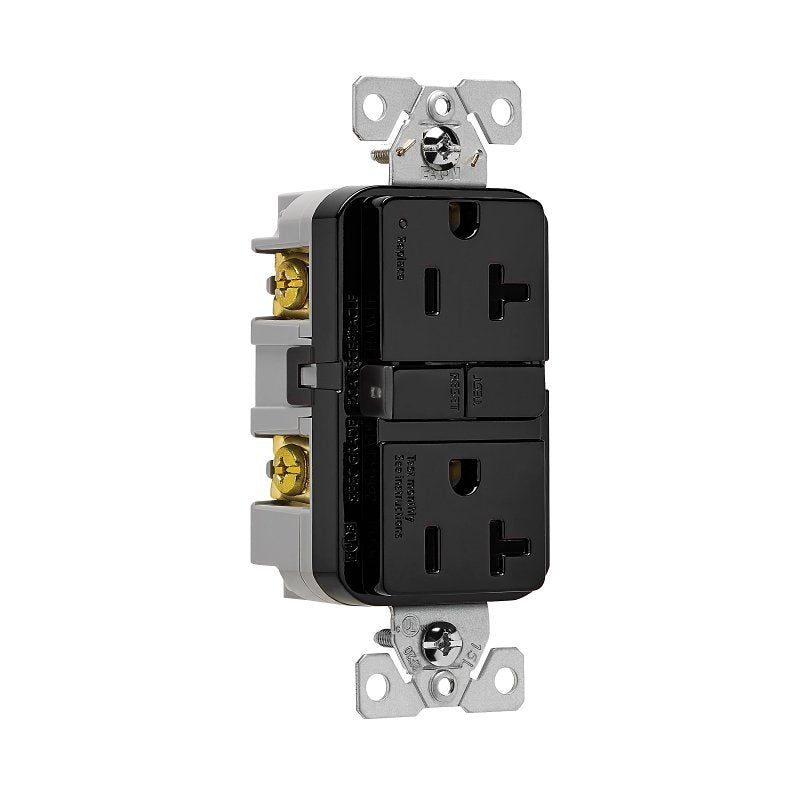

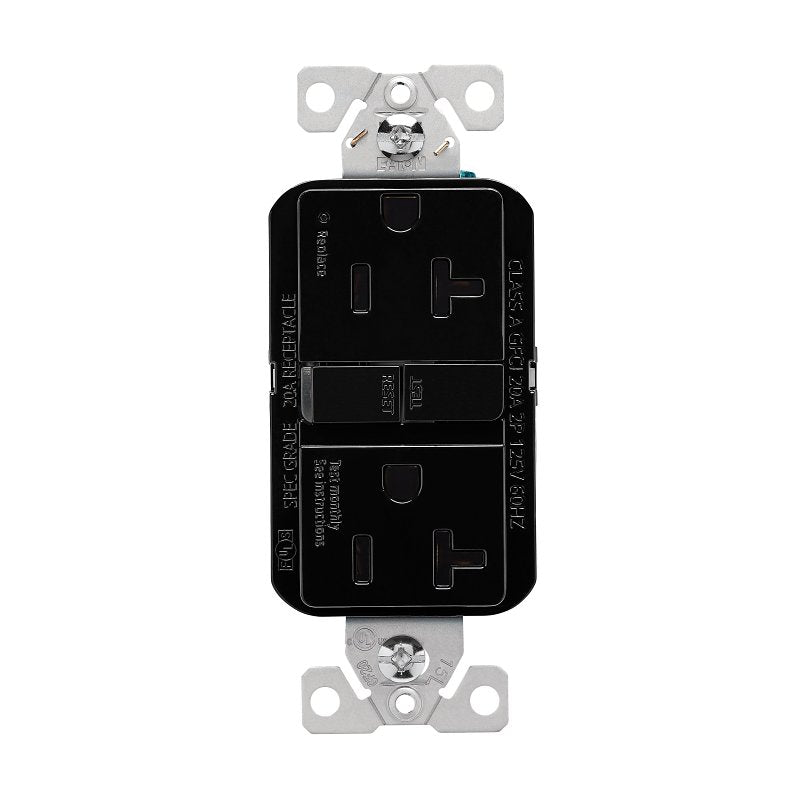

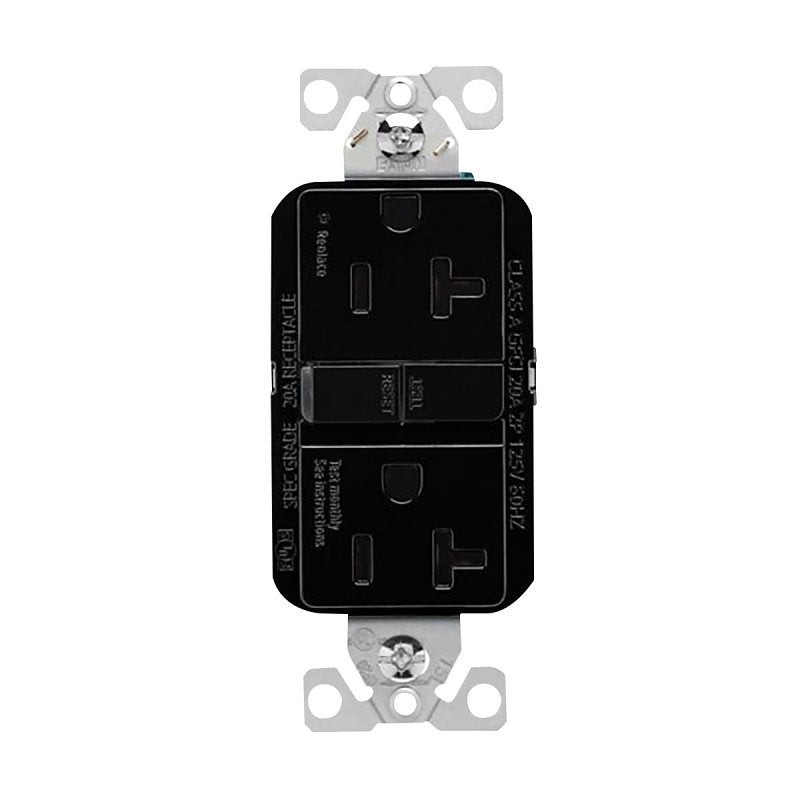

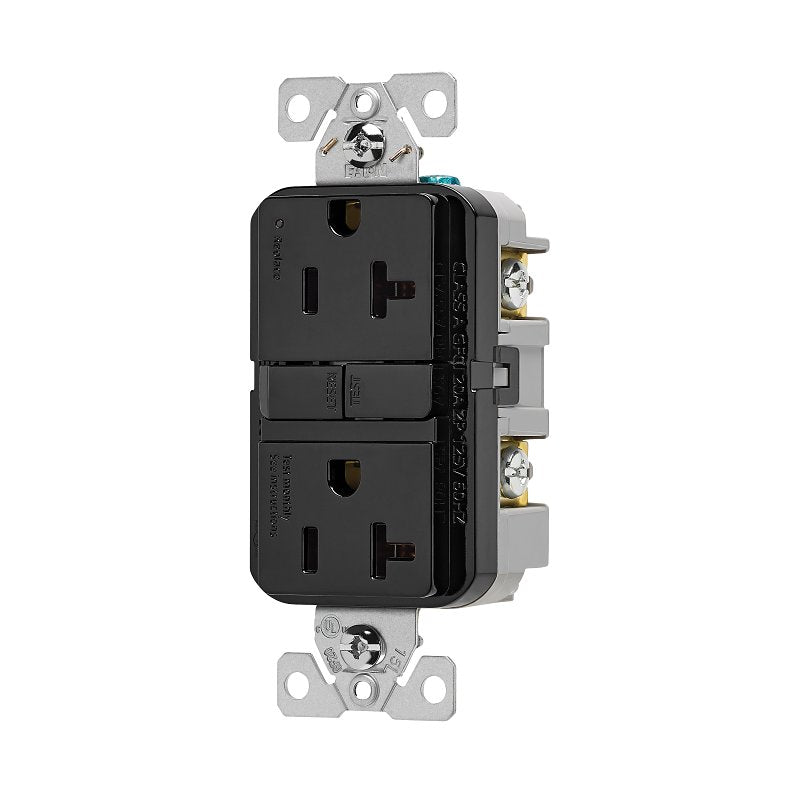

Eaton GF20BK GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Black
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$21.62
Regular price
$24.95
Unit price
Unavailable
Shipping calculated at checkout.
13% off
Eaton GF20BK GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Black is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton GF20BK GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, ...
Sale price
$21.62
Regular price
$24.95
Unit price
Unavailable
Cooper Wiring | Our Item #:
MORG7491848
Sale price
$21.62
Regular price
$24.95
Unit price
Unavailable
Shipping calculated at checkout.
Eaton GF20BK GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Black is backordered and will ship as soon as it is back in stock.
Features
- Slimmer design for easy installation, leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- GFCIs incorporate lock out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
- Wider button wells for easy test and reset
- Intuitive LED status indicators for trip and end of life states
- Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
- Meets and exceeds 10 kA short circuit testing and underwriters laboratories
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- External backwire clamps provide visual confirmation of secure termination
- Line side terminals are backed out and staked for fast installation
Description
Description
Eaton GFCI Receptacle, Self-Test, 125 V, 20 A, 2 Pole, 10 kA Short Circuit, Grounding Type: Automatic, 3 Wires, 14 to 10 AWG Wire, Back, Side Wiring, NEMA 5-20R NEMA Rating, -35 to 66 deg C Operating, Polycarbonate/Steel/Thermoplastic/PVC, Black, Dimensions: 4.19 in H x 1.69 in W
Unit: EA
UPC: 032664012372
Model Number: GF20BK
Unit: EA
UPC: 032664012372
Model Number: GF20BK
Additional Information
Additional Information
- Color: Black
- Current Rating: 20 A
- Dimensions: 4.19 in H x 1.69 in W
- Grounding Type: Automatic
- Material: Polycarbonate/Steel/Thermoplastic/PVC
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -35 to 66 deg C
- Short Circuit Current Rating: 10 kA
- Type: Self-Test
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
