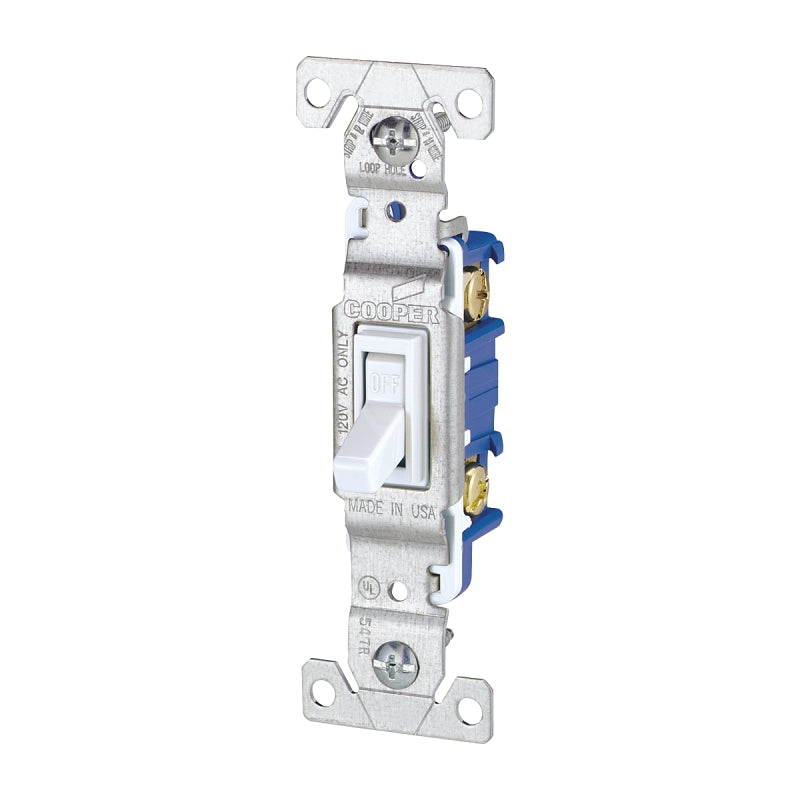

Eaton 1301W Switch, 15 A, 120 V, Push-In Terminal, Polycarbonate Housing Material, White, Pack of 10

Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for Feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.
Unit: EA
UPC: 032664750878
Model Number: 1301W

• Action: Toggle
• Actuator Type: Toggle
• Color: White
• Contact Material: Silver
• Current Rating: 15 A
• Dielectric Strength: 1500 V
• Dimensions: 1.31 in L x 3.28 in W x 0.88 in D
• Housing Material: Polycarbonate
• Mounting Type: Wall
• Number of Poles: 1
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Push-In
• Voltage Rating: 120 V
• Wattage Rating: 0.5 hp
