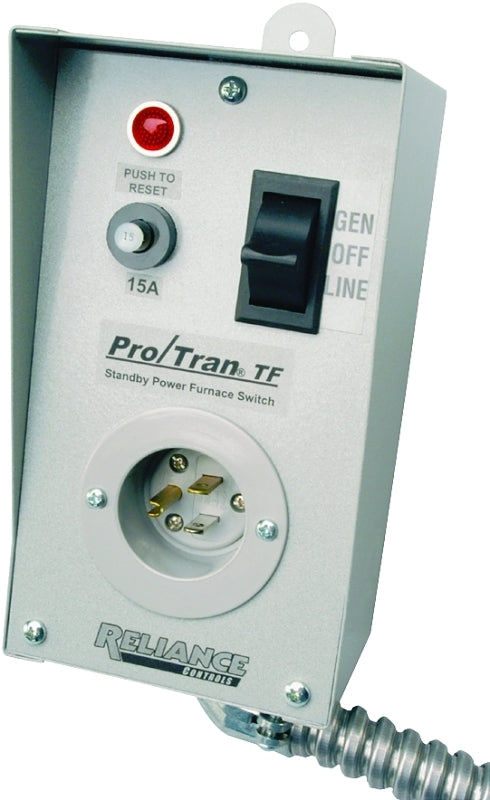

Reliance Controls TF151W Generator Transfer Switch, 1-Phase, 15 A, 125 V, 1-Circuit, 1-Breaker, NEMA 5-15 Enclosure

The Easy/Tran TF transfer switch is designed for the control of a single circuit, such as a forced-air furnace, in the event of a power failure. The attached 18 in flexible aluminum conduit is pre-wired and allows the TF to be easily connected at the circuit breaker panel or the furnace or at any point in between. Power can be supplied from a portable generator, inverter, RV generator, fuel cell or any standby source capable of producing sufficient current to operate the desired load. Uses standard grounded extension cord.
Unit: EA
UPC: 851890000256
Model Number: TF151W

• Current Rating: 15 A
• Enclosure Type: NEMA 5-15
• Includes: 1/2 x 18 in Flexible Aluminum Conduit
• Number of Breakers: 1
• Number of Circuits: 1
• Number of Phases: 1
• Number of Poles: 1
• Voltage Rating: 125 V
• Wattage Rating: 1875 W
• Wire Size: 10 AWG
