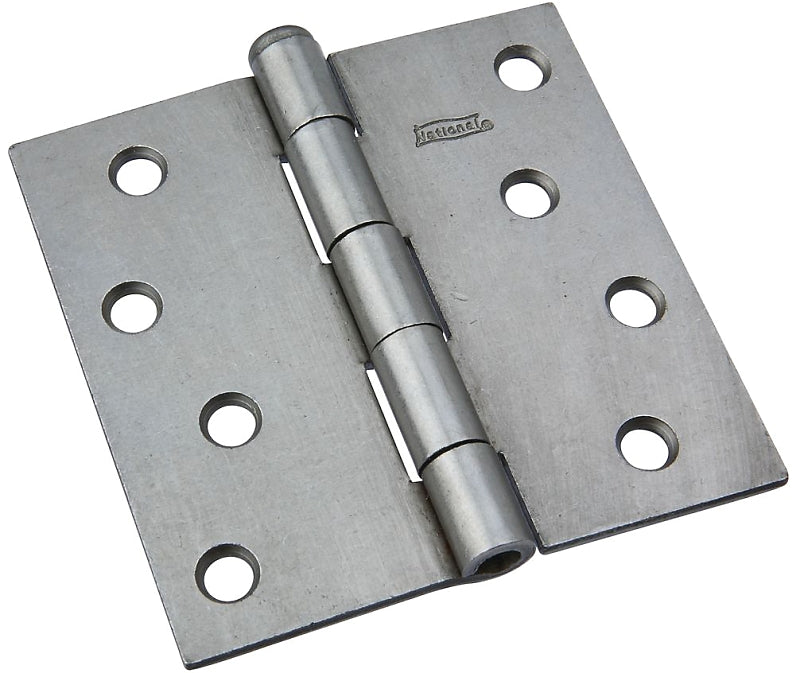

National Hardware N139-998 Broad Hinge, 4 in W Frame Leaf, 0.11 in Thick Frame Leaf, Steel, Steel, Loose, Removable Pin

504. Designed for general utility and industrial applications. Hinges are swaged for mortise installations. Loose pin allows doors to be removed without taking off hinges. Plain steel version can be welded. Boxed.
Unit: EA
UPC: 038613139992
Model Number: N139-998

• Dimensions: 3.98 in L x 4 in W
• Door Leaf Thickness: 0.11 in
• Door Leaf Width: 4 in
• Finish: Steel
• Frame Leaf Thickness: 0.11 in
• Frame Leaf Width: 4 in
• Hole Spacing: 1 in
• Material: Steel
• Mounting Hole Diameter: 0.29 in
• Mounting Type: Full Mortise
• Number of Knuckles: 5
• Number of Mounting Holes: 8
• Pin Diameter: 0.27 in
• Pin Type: Removable Loose
• Weight Capacity: 70 lb
