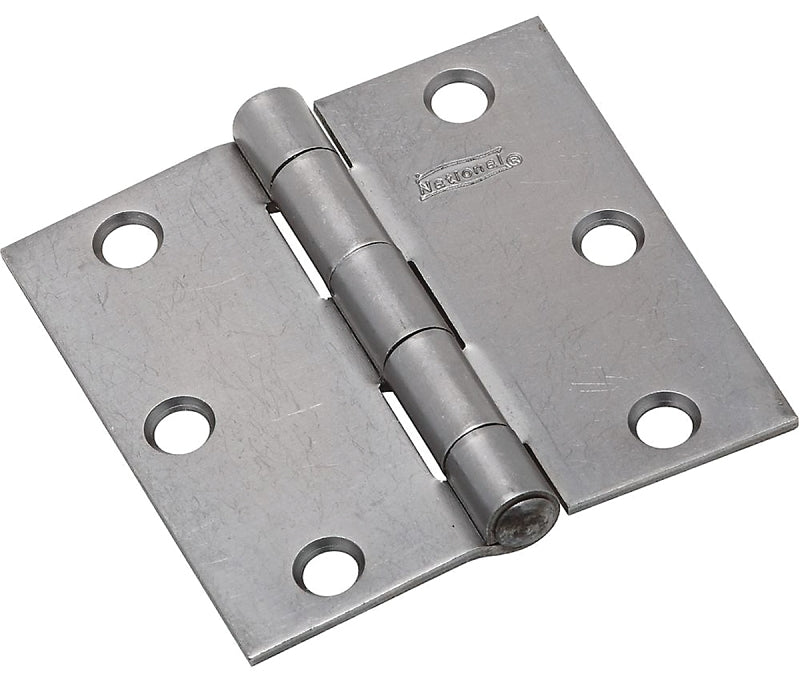

National Hardware N140-566 Utility Hinge, 3-1/2 in W Frame Leaf, 0.11 in Thick Frame Leaf, Cold Rolled Steel, Steel

505. Swaged for mortise installations. Manufactured with cold rolled steel. Five knuckle, full mortise design. Riveted, non-removable pin. Boxed loose barcoded.
Unit: EA
UPC: 038613140561
Model Number: N140-566

• Dimensions: 3-1/2 in L x 3.62 in W
• Door Leaf Thickness: 0.11 in
• Door Leaf Width: 3-1/2 in
• Finish: Steel
• Frame Leaf Thickness: 0.11 in
• Frame Leaf Width: 3-1/2 in
• Hole Spacing: 1.38 in
• Material: Cold Rolled Steel
• Mounting Hole Diameter: 0.23 in
• Mounting Type: Full Mortise
• Number of Knuckles: 5
• Number of Mounting Holes: 6
• Pin Diameter: 0.27 in
• Pin Type: Riveted
• Weight Capacity: 70 lb
