National Hardware  |  Our Item #: MORG7163124

Model Number: N225-946 - UPC : 038613225947

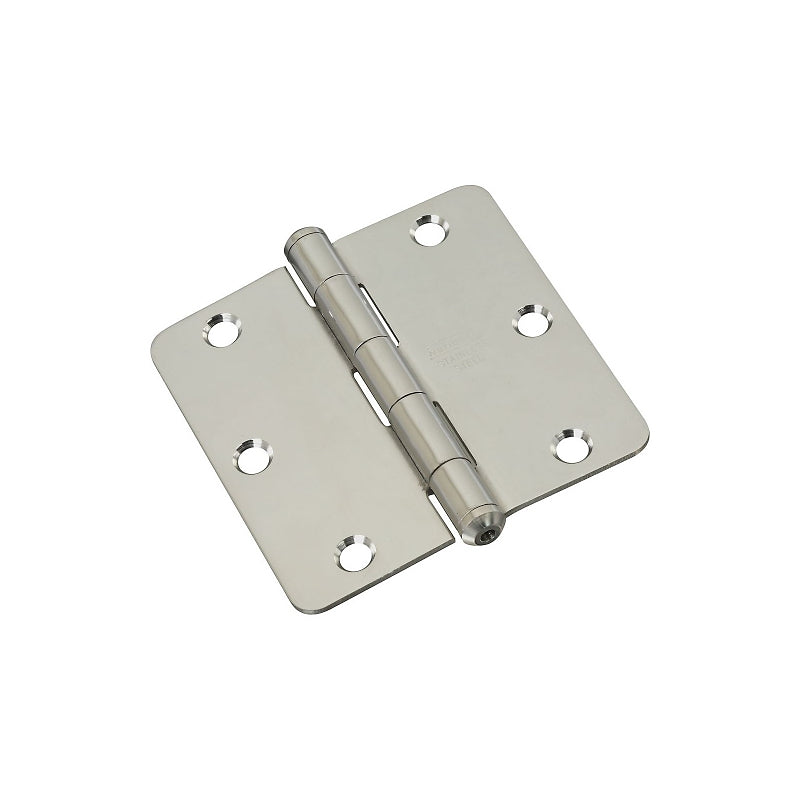

National Hardware N225-946 Door Hinge, 3-1/2 in H Frame Leaf, 0.08 in Thick Frame Leaf, Stainless Steel, Stainless Steel

Get special pricing! Apply for a business account today.

Apply Now
$19.86 $25.69
Shipping calculated at checkout.
23% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Heavy-gauge cold-rolled steel for added strength
  • Nib on hinge for finished appearance
  • Screw holes are countersunk
  • Removable pin for easy installation and removal
  • Stainless steel for maximum corrosion resistance
  • WeatherGuard protection withstood these harsh conditions with very little deterioration

Description
National Hardware Door Hinge, 55 lb Weight, Door Leaf Height: 3-1/2 in, Door Leaf Thickness: 0.08 in, Frame Leaf Height: 3-1/2 in, Pin Type: Non-Rising, Removable, Pin Diameter: 0.234 in, Full-Mortise Mounting, Number of Mounting Holes: 6, Mounting Hole Diameter: 0.272 in, Corner Radius: 1/4 in, Stainless Steel, Stainless Steel, Dimensions: 3-1/2 in L x 3-1/2 in W, Includes: (5) Knuckles, #9 Flat Head Screws
Unit: CD
UPC: 038613225947
Model Number: N225-946

Additional Information

  • Corner Radius: 1/4 in
  • Dimensions: 3-1/2 in L x 3-1/2 in W
  • Door Leaf Height: 3-1/2 in
  • Door Leaf Thickness: 0.08 in
  • Finish: Stainless Steel
  • Frame Leaf Height: 3-1/2 in
  • Includes: (5) Knuckles 9 Flat Head Screws
  • Material: Stainless Steel
  • Mounting Hole Diameter: 0.272 in
  • Mounting Type: Full-Mortise
  • Number of Mounting Holes: 6
  • Pin Diameter: 0.234 in
  • Pin Type: Non-Rising Removable
  • Weight Capacity: 55 lb
