National Hardware  |  Our Item #: MORG7156557

Model Number: N146-068 - UPC : 038613146068

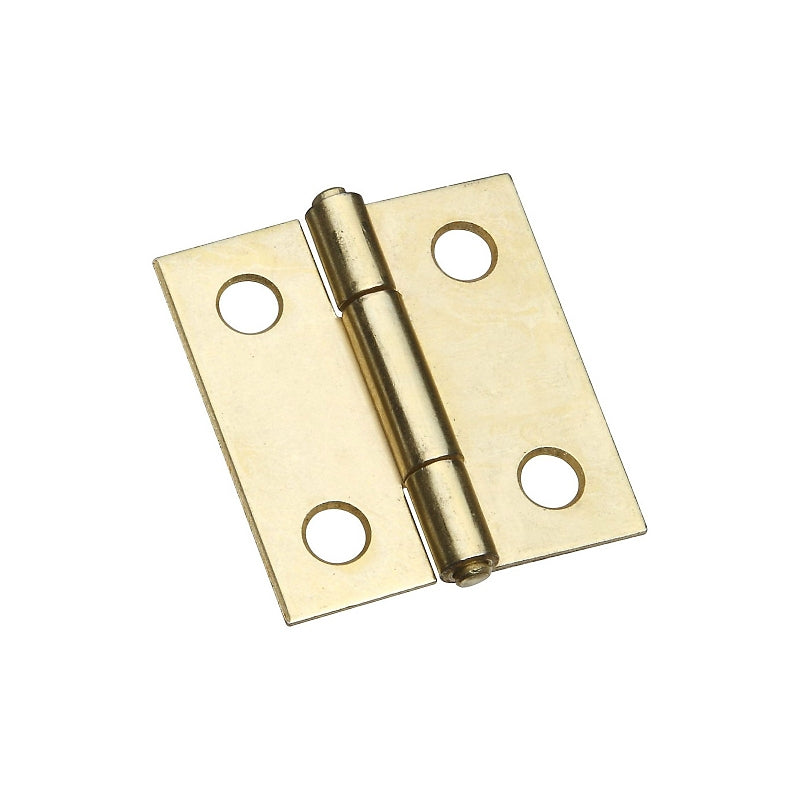

National Hardware N146-068 Narrow Hinge, 1-1/2 in W Frame Leaf, 0.045 in Thick Frame Leaf, Brass/Steel, Brass, 7 lb

Get special pricing! Apply for a business account today.

Apply Now
$3.97 $6.05
Shipping calculated at checkout.
34% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Swaged for mortise installations
  • Non-removable pin is for added security
  • Tight pin allows for right or left hand applications

Description
National Hardware Narrow Hinge, 7 lb Weight, Door Leaf Width: 1-1/2 in, Door Leaf Thickness: 0.045 in, Frame Leaf Width: 1-1/2 in, Frame Leaf Thickness: 0.045 in, Number of Knuckles: 3, Pin Type: Fast Spun, Pin Diameter: 0.106 in, Orientation Type: Left, Right, Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.197 in, Hole Spacing: 1.046 in, Brass/Cold Rolled Steel, Brass, Dimensions: 1-3/8 in L x 1-1/2 in W
Unit: CD 2
UPC: 038613146068
Model Number: N146-068

Additional Information

  • Dimensions: 1-3/8 in L x 1-1/2 in W
  • Door Leaf Thickness: 0.045 in
  • Door Leaf Width: 1-1/2 in
  • Finish: Brass
  • Frame Leaf Thickness: 0.045 in
  • Frame Leaf Width: 1-1/2 in
  • Hole Spacing: 1.046 in
  • Material: Brass/Cold Rolled Steel
  • Mounting Hole Diameter: 0.197 in
  • Mounting Type: Mortise
  • Number of Knuckles: 3
  • Number of Mounting Holes: 4
  • Orientation Type: Left Right
  • Pin Diameter: 0.106 in
  • Pin Type: Fast Spun
  • Weight Capacity: 7 lb
