National Hardware  |  Our Item #: MORG7156524

Model Number: N145-920 - UPC : 038613145924

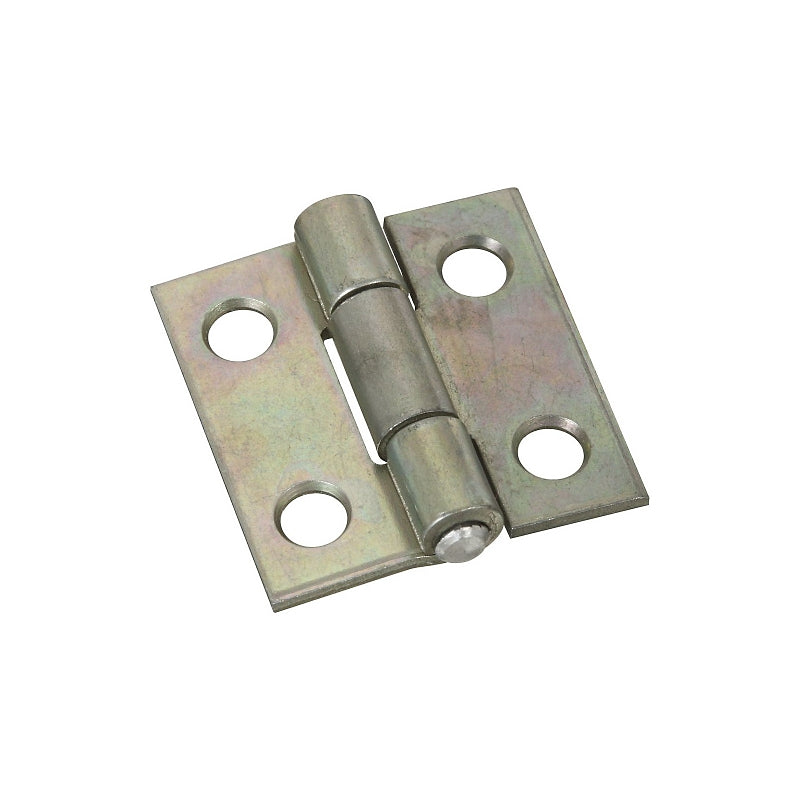

National Hardware N145-920 Utility Hinge, 1 in L x 1 in W Dimensions, 0.106 in Dia Pin, 1 in W Frame Leaf, Zinc, Mortise

Get special pricing! Apply for a business account today.

Apply Now
$3.12 $4.79
Shipping calculated at checkout.
35% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Swaged for mortise installations
  • Non-removable pin is for added security
  • Tight pin allows for right or left hand applications

Description
National Hardware Utility Hinge, 7 lb Weight, Door Leaf Width: 1 in, Door Leaf Thickness: 0.045 in, Frame Leaf Width: 1 in, Frame Leaf Thickness: 0.045 in, Number of Knuckles: 5, Pin Type: Fast Spun, Pin Diameter: 0.106 in, Orientation Type: Left, Right, Mortise Mounting, Number of Mounting Holes: 4, Mounting Hole Diameter: 0.165 in, Hole Spacing: 5/8 in, Aluminum/Cold Rolled Steel, Zinc, Dimensions: 1 in L x 1 in W
Unit: CD 2
UPC: 038613145924
Model Number: N145-920

Additional Information

  • Dimensions: 1 in L x 1 in W
  • Door Leaf Thickness: 0.045 in
  • Door Leaf Width: 1 in
  • Finish: Zinc
  • Frame Leaf Thickness: 0.045 in
  • Frame Leaf Width: 1 in
  • Hole Spacing: 5/8 in
  • Material: Aluminum/Cold Rolled Steel
  • Mounting Hole Diameter: 0.165 in
  • Mounting Type: Mortise
  • Number of Knuckles: 5
  • Number of Mounting Holes: 4
  • Orientation Type: Left Right
  • Pin Diameter: 0.106 in
  • Pin Type: Fast Spun
  • Weight Capacity: 7 lb
