MARINCO  |  Our Item #: MLAN969-701

Model Number: 701 - UPC : 870216000015

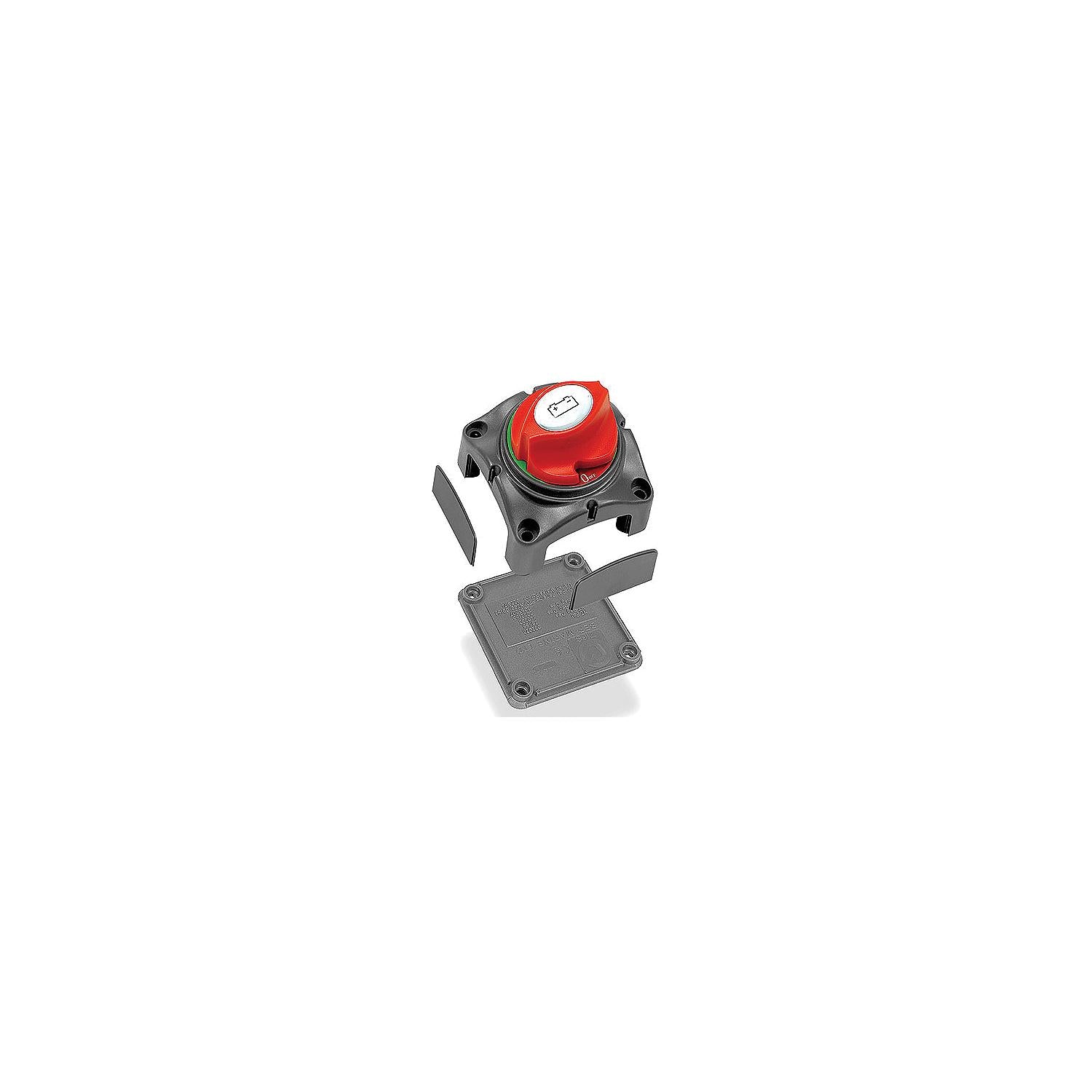

BEP Contour Surface or Recessed Manual Battery Master Switch

$52.59 $53.89
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

    Compact, lightweight
  • Removable key
  • Countersunk recesses for surface mount application
  • Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
  • Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
  • Standard interchange label system
  • Molded in high temperature, fiber reinforced plastics

Description
2 POSITION - ON/OFFPanel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.The 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45° position. The control knob also features an interchangeable labeling system allowing a full range of applications. A rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking.
  • Compact, lightweight
  • Removable key
  • Countersunk recesses for surface mount application
  • Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
  • Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
  • Standard interchange label system
  • Molded in high temperature, fiber reinforced plastics

UPC: 870216000015
Model Number: 701

Additional Information

  • Mount Type: Surface or Recessed
  • Size: 2-3/4" x 2-3/4" x 3"
  • Voltage: 6-48

BEP Contour Surface or Recessed Manual Battery Master Switch
MARINCO

BEP Contour Surface or Recessed Manual Battery Master Switch

$52.59 $53.89
2 POSITION - ON/OFFPanel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.The 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45° position. The control knob also features an interchangeable labeling system allowing a full range of applications. A rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking.
  • Compact, lightweight
  • Removable key
  • Countersunk recesses for surface mount application
  • Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
  • Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
  • Standard interchange label system
  • Molded in high temperature, fiber reinforced plastics

UPC: 870216000015
Model Number: 701
