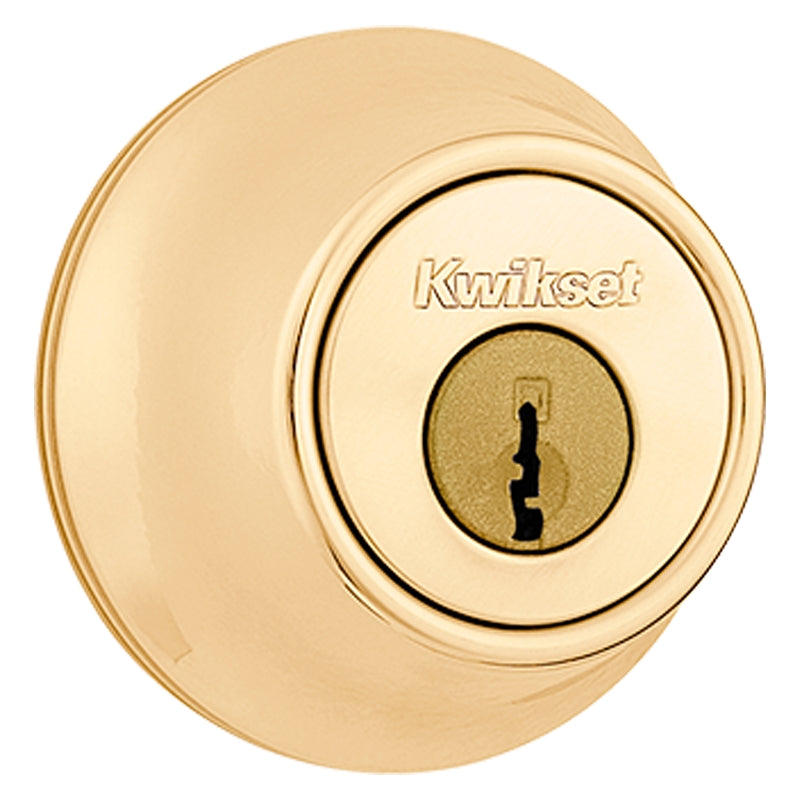

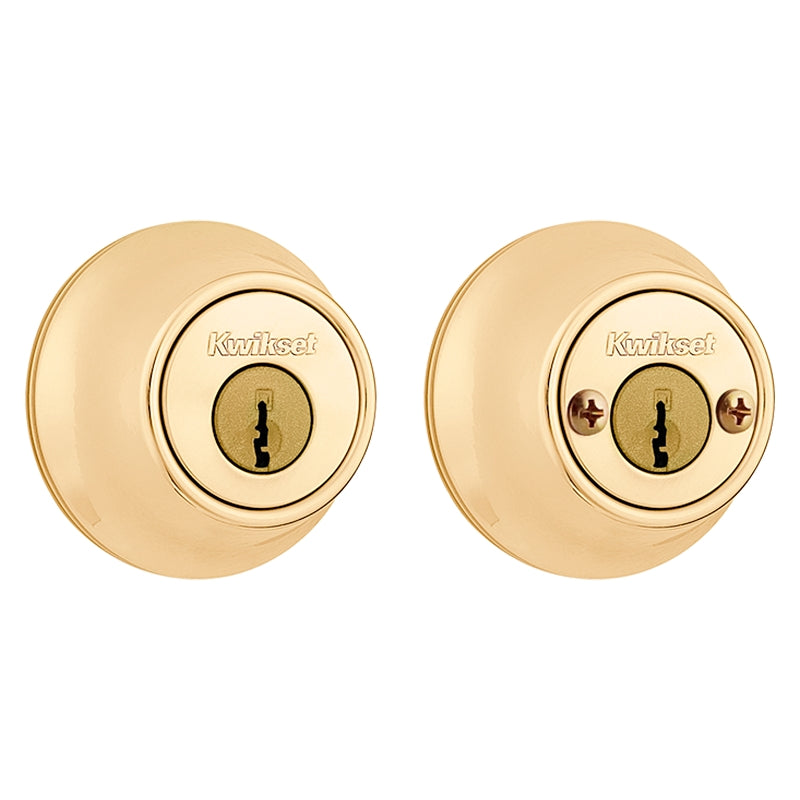

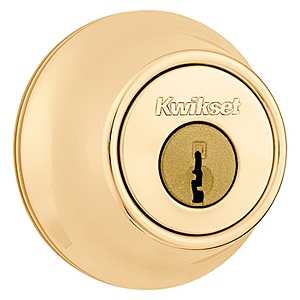

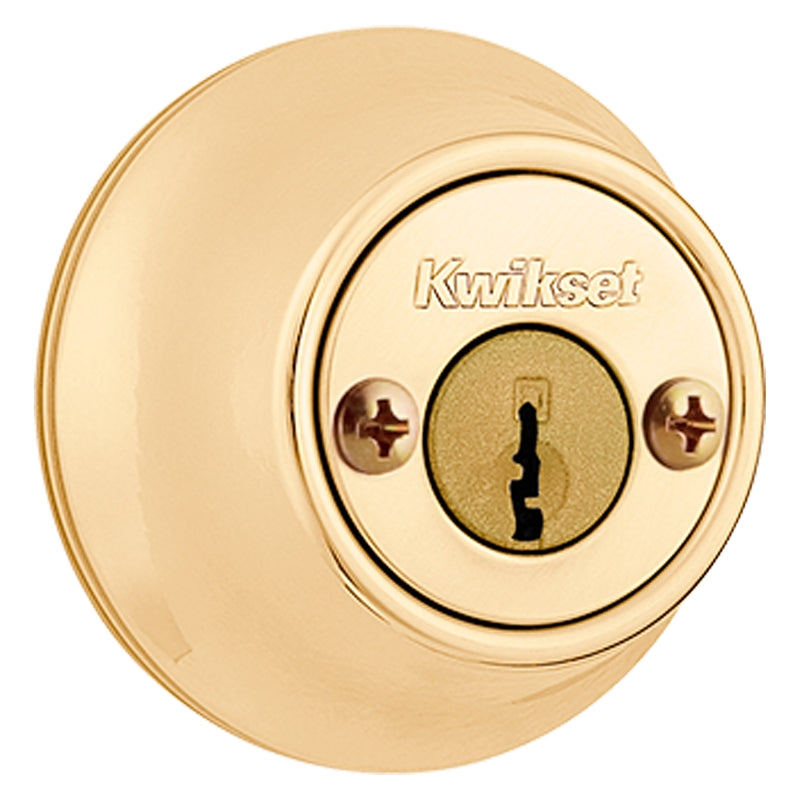

Kwikset 660 Series 6653RCALRCSK3BX Deadbolt, Keyed Alike Key, Steel, Polished Brass, 2-3/8 x 2-3/4 in Backset, K3 Keyway

Operated by key outside and inside. Security deadbolts feature full 1 in solid core throw bolt, all metal mechanisms, anti-pry shield and pick-resistant 5-pin system. Door prep 2-1/8 in crossbore, 1 in edge bore, 1 in x 2-1/4 in latch face. Backset adjustable 2-3/8 to 2-3/4 in. Door thickness fits 1-3/8 to 1-3/4 in doors. Cylinder 5-pin. Faceplates of 1 in x 2-1/4 in round corner. Strikes of 1 in x 2-1/4 in round corner. Bolt 1 in throw. Reversible for right or left handed doors. ANSI/BHMA Grade 3.
Unit: BX
UPC: 883351762595
Model Number: 6653RCALRCS5303K3

• Backset Size: 2-3/8 x 2-3/4 in
• Cross Bore Diameter: 2-1/8 in
• Dimensions: 2-7/16 in H
• Edge Bore Diameter: 1 in
• Faceplate Size: 1 x 2-1/4 in
• Finish: Polished Brass
• Key Type: Keyed Alike
• Keyway Type: K3
• Material: Steel
• Number of Cylinders: 2
• Projection Size: 1-1/16 in
• Re-Key Technology: Smartkey
• Strike Size: 1 in W x 2-1/4 in H
• Strike Type: Round Corner
• Suitable for: 1-3/8 to 1-3/4 in Thick Doors
• Throw Length: 1 in
