Knape & Vogt Mfg  |  Our Item #: MORG2517985

Model Number: 8400P12 - UPC : 029274109875

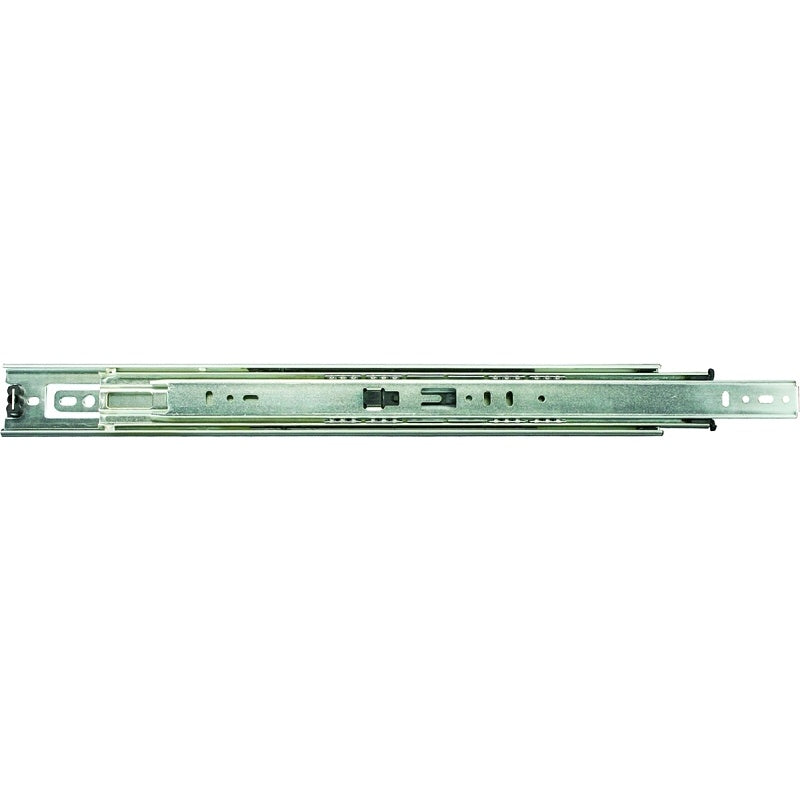

Knape & Vogt 8400P 12 Drawer Slide, 100 lb, 12 in L Rail, 1/2 in W Rail, Anochrome

Get special pricing! Apply for a business account today.

Apply Now
$21.23 $24.49
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Full extension drawer slide features an ergonomically designed push-in lever release for easy drawer removal
  • The reversed flex tabs allow improved slide performance with side clearance tolerance adjustments
  • 8400 is an unhanded design with traditional 32 mm hole pattern that supports industry standards
  • Recommended for drawers up to 24 in wide
  • Rolled ball-bearing raceway allows lateral loads to be carried by ball-bearings and not transferred to bushings sliding on metal
  • Mounting hole is provided for face frame applications to eliminate the need for a separate bracket
  • Access holes allow for drawer adjustments at full extension without removing drawer

Description
Medium-duty, precision slides for box drawer or pedestal file drawers up to 24 in wide. For frame and frameless construction. May be used horizontal position with a reduced load rating of 30 lb. Height of 1-13/16 in, required clearance of 1/2 in plus 1/32 in minus 0 each side. Features telescoping, full extension on precision steel ball bearings. 32 mm hole pattern with direct access mounting. Lever disconnect for easy drawer removal. Ball retainer latch and ramps, for easy drawer insertion. Drawer adjustment without removal. Flexible mounting tabs self-adjust to side clearance. Metal ball retainer holds 3 bearings per inch of race for smooth and quiet motion. Polymer stop cushions. Non-handed. Packaged with screws and installation instructions.
Unit: SET
UPC: 029274109875
Model Number: 8400P12

Additional Information

  • Bearing Type: Ball
  • Finish: Anochrome
  • Includes: 7 x 1/2 in Phillips Pan Head
  • Rail Length: 12 in
  • Rail Width: 1/2 in
  • Weight Capacity: 100 lb


Application: For desk and credenza box drawers, cabinetry, architectural woodwork

Warranty: Limited Lifetime
