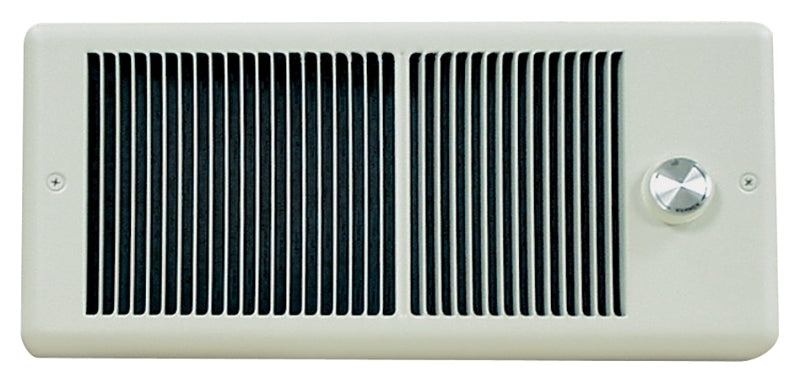

TPI HF4315TRPW Electric Bath Heater with Wall Box, 5.4/6.3 A, 208/240 V, 3840/5120 Btu, 70 cfm Air, White

Manual reset thermal limit. Finned tubular steel element. Propeller style fan blade, 2200 rpm/70 CFM. Powder-coated 20 ga steel front. Rough in dimensions 14-1/2 ft W x 7-1/8 ft H, 3-1/2 ft deep. Single pole built-in thermostat. Unit not approved for ceiling mount applications. Unit can be positioned to allow left, right or top discharge. Grill dimensions of 16-3/4 in W x 7-5/8 in H.

• Air Flow Rate: 70 cfm
• BTU Rating: 3840/5120 Btu
• Color: White
• Current Rating: 5.4/6.3 A
• Dimensions: 14.5 in L x 7.12 in W x 3.5 in H
• Finish: Powder-Coated
• Grille Height: 7-5/8 in
• Grille Material: Steel
• Grille Width: 16-3/4 in
• Heater Type: Fan Forced
• Installation Type: Surface
• Thermostat Type: 1-Pole
• Voltage Rating: 208/240 V
