Ge  |  Our Item #: MORG6118137

Model Number: TLM812FCUDP - UPC : 783164396669

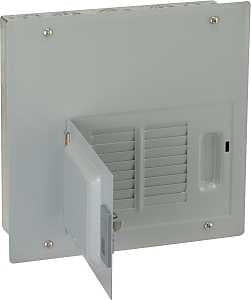

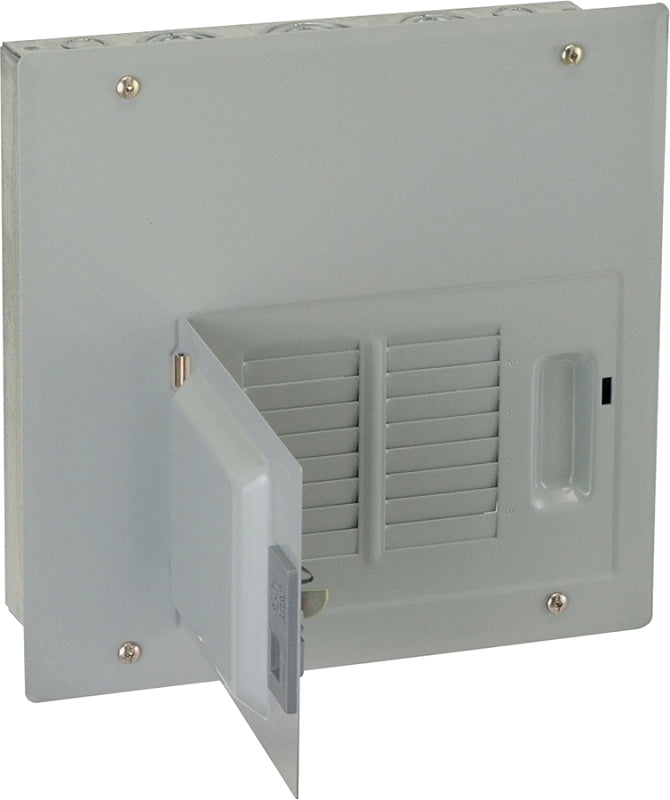

GE PowerMark Gold TLM Series TLM812FCUDP Load Center, 125 A, 8-Space, 16-Circuit, Main Lug, NEMA 1 Enclosure, Flush

$53.83 $61.99
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Box is significantly smaller and lighter while maintaining optimum wire-bending space
  • Side mounted main breaker allows top or bottom feed
  • Sturdy copper bus and galvanized box increase durability and reliability, tin plated for corrosion resistance
  • Minimum 100% neutral terminations
  • All neutral holes rated for 14 - 4 AWG wire
  • Extruded neutrals are easier to wire, reducing installation time and cost
  • Combination slotted/Robertson screws speed wiring
  • Accepts GE Q-Line branch circuit breakers, including GEs exclusive 1/2 in THQPs
  • Interior removes and reinstalls easily
  • Main breaker not included

Description
PowerMark Gold load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

Additional Information

  • Breaker/Load Center Type: Main Lug
  • Bus Bar Material: Copper
  • Cable Size: 6 to 1 AWG
  • Current Rating: 125 A
  • Enclosure Type: NEMA 1
  • Finish: Galvanized
  • Interrupt Rating: 65 kA
  • Mounting Type: Flush
  • Number of Circuits: 16
  • Number of Phases: 1
  • Number Of Spaces: 8
  • Voltage Rating: 120/240 V
  • Wiring Configuration: 3-Wire
