GE | Our Item #:
MORG6117790
Model Number: TLM1212CCUP - UPC : 783164396560

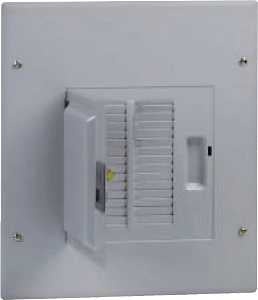

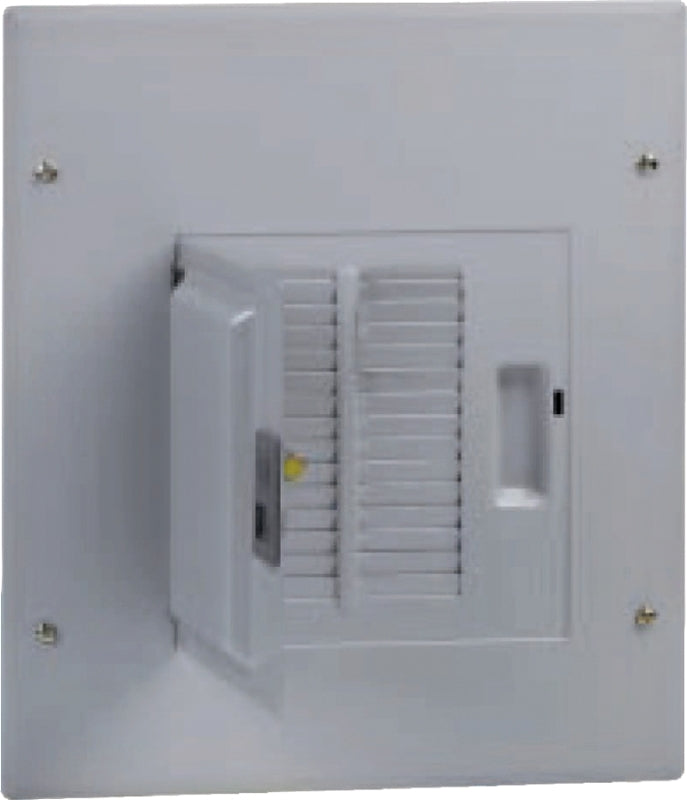

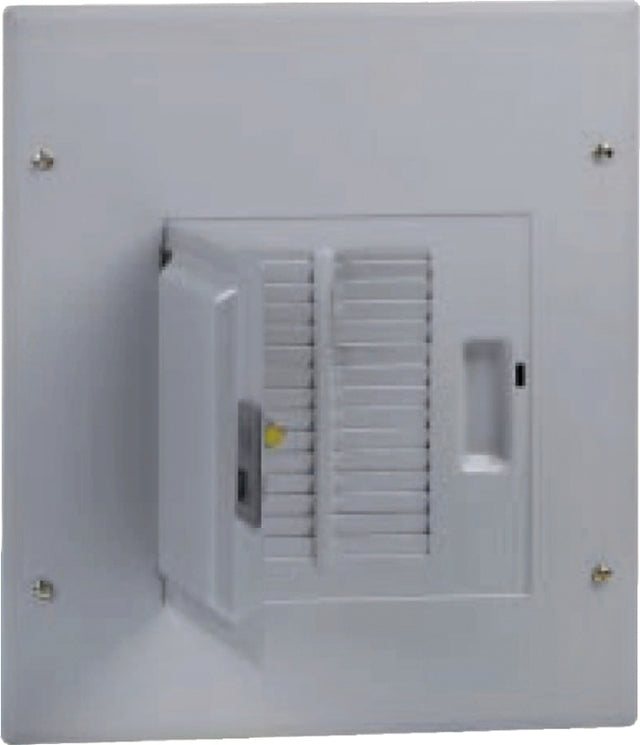

GE PowerMark Gold TLM Series TLM1212CCUP Load Center, 125 A, 12-Space, 24-Circuit, Main Lug, NEMA 1 Enclosure
$56.19
$64.69
Unit price
/
Unavailable
Shipping calculated at checkout.
13% off
GE PowerMark Gold TLM Series TLM1212CCUP Load Center, 125 A, 12-Space, 24-Circuit, Main Lug, NEMA 1 Enclosure is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
GE PowerMark Gold TLM Series TLM1212CCUP Load Center, 125 A, 12-Spa...
$56.19
$64.69
Unit price
/
Unavailable
Features
- Box is significantly smaller and lighter while maintaining optimum wire-bending space
- Side mounted main breaker allows top or bottom feed
- Sturdy copper bus and galvanized box increase durability and reliability, tin plated for corrosion resistance
- Minimum 100% neutral terminations
- All neutral holes rated for 14 - 4 AWG wire
- Extruded neutrals are easier to wire, reducing installation time and cost
- Combination slotted/Robertson screws speed wiring
- Accepts GE Q-Line branch circuit breakers, including GEs exclusive 1/2 in THQPs
- Interior removes and reinstalls easily
- Main breaker not included
Description
Description
PowerMark Gold load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.
Unit: EA
UPC: 783164396560
Model Number: TLM1212CCUP
Unit: EA
UPC: 783164396560
Model Number: TLM1212CCUP
Additional Information
Additional Information
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Copper
- Cable Size: 6 to 2/0 AWG
- Current Rating: 125 A
- Enclosure Type: NEMA 1
- Finish: Galvanized
- Interrupt Rating: 65 kA
- Mounting Type: Flush Surface
- Number of Circuits: 24
- Number of Phases: 1
- Number Of Spaces: 12
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
