Gb  |  Our Item #: MORG6309157

Model Number: 19-086 - UPC : 032076190866

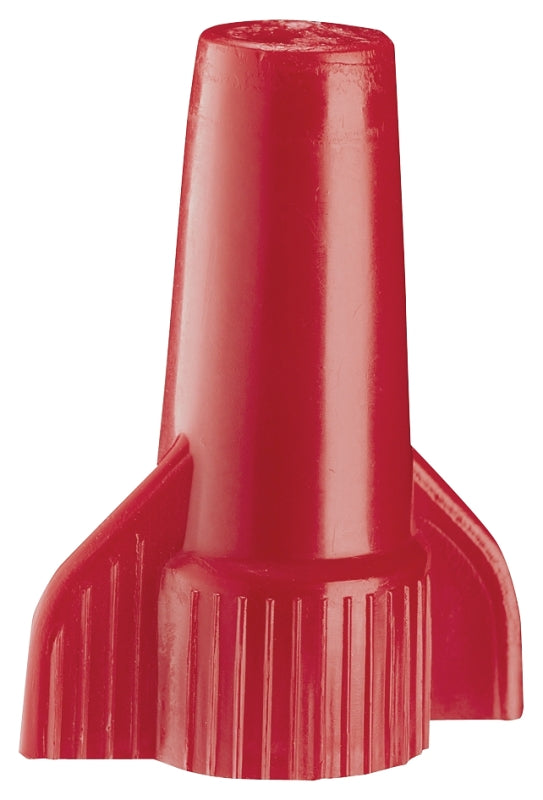

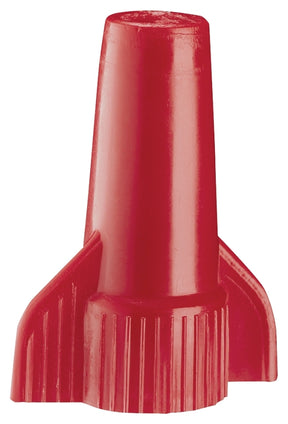

Gardner Bender WingGard 19-086 Wire Connector, 22 to 6 AWG Wire, Steel Contact, Thermoplastic Housing Material, Red

Get special pricing! Apply for a business account today.

Apply Now
$1.19 $1.85
Shipping calculated at checkout.
36% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Wings are knurled for a sure grip and Offset from centerline for greater twisting leverage
  • Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
  • Flame-retardant properties resist heat distortion up to 221 deg F
  • High-dielectric shell features deep skirt design to prevent exposure of bare wire
  • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only

Description
GB's WingGard twist on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one-size can do the job of Multi-ple standard connectors. The swept wings provide added turning torque and reduce the strain of Multi-ple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
Unit: CD 6
UPC: 032076190866
Model Number: 19-086

Additional Information

  • Color: Red
  • Contact Coating: Zinc
  • Contact Material: Steel
  • Height: 5.5 in
  • Housing Material: Thermoplastic
  • Length: 1-1/4 in
  • Mounting Type: Screw
  • Voltage Rating: 300/600 V
  • Width: 29/32 in
  • Wire Size: 22 to 6 AWG
