B & K Industries | Our Item #:
MORG6136923
Model Number: 109-814 - UPC : 032888098145

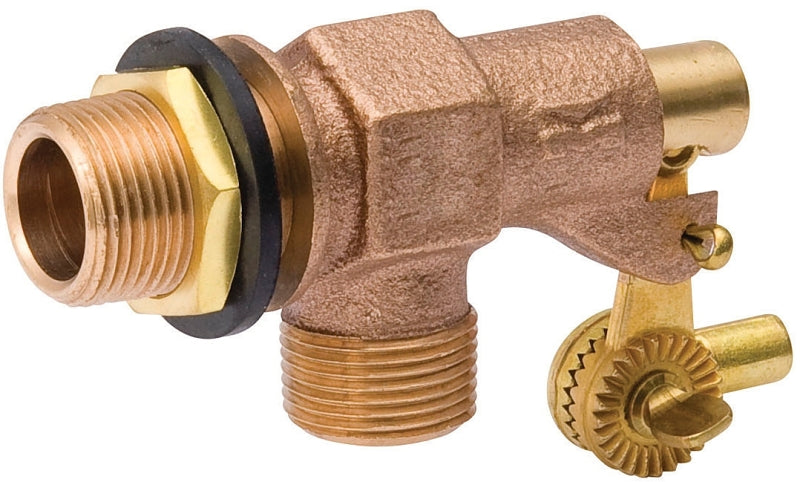

B & K 109-814 Tank Float Valve, 3/4 in, Male x Male, 20 TPI Rod, 1/4 in L Rod, Bronze Body
$18.70
$26.15
Unit price
/
Unavailable
Shipping calculated at checkout.
28% off
B & K 109-814 Tank Float Valve, 3/4 in, Male x Male, 20 TPI Rod, 1/4 in L Rod, Bronze Body is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
B & K 109-814 Tank Float Valve, 3/4 in, Male x Male, 20 TPI Rod...
$18.70
$26.15
Unit price
/
Unavailable
Features
- Flange provides support against tank walls (male)
- Serrated arm allows easy adjustment of water level
- Pivot assembly prevents breakage during freezing
- Replaceable seals
Description
Description
Two tapered threads on inlet for mating with pipe and a straight thread for a locknut. Machined flange for support against tank wall. All bronze bodies. Serrated arms for quick and easy adjustment of water level (all sizes). High tensile manganese bronze long and short arms. Stainless steel pivot bolt assembly. No-jam, single lever action. Replaceable seals. Free discharge flow capacity. No R400-1/2 12 gpm at 35 psi, 22 gpm at 85 psi. No R400-3/4 21 gpm at 35 psi, 39.9 gpm at 85 psi.
Additional Information
Additional Information
- Body Material: Bronze
- Connection Type: Male x Male
- Includes: Locknut and Washer
- Nominal Size: 3/4 in
- Pressure Rating: 125 psi
- Rod Length: 1/4 in
- Rod Thread: 20 TPI
