Erico  |  Our Item #: MORG2482057

Model Number: IBTB - UPC : 782856625452

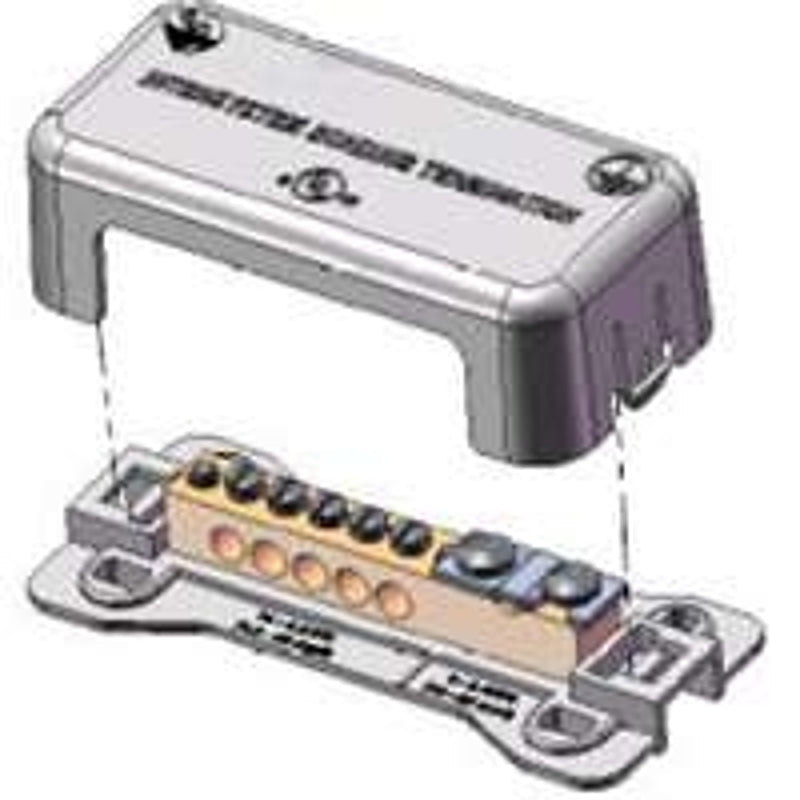

nVent ERICO IBTB Intersystem Bonding Termination Bar, Polymer

$22.61 $26.09
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Interconnects and terminates grounding conductors from telephone, CATV, radio and TV antennas
  • Accommodates five connectors for conductor sizes #14 Solid to #6 Stranded (1.5 to 25 sq-mm)
  • Accommodates one connector for conductor sizes #6 Solid to #2 Stranded (16 to 35 sq-mm)
  • Integral mounting base enables easy installation
  • Includes mounting hardware
  • Connects to grounding electrode conductor, does not rely on meter base enclosure bonding connection

Description
The Intersystem Bonding Termination (IBTB), part of the Vent nVent ERICO line of facility electrical protection products, is designed to meet the requirements of the 2008 NEC Article 250.94 bonding for other systems. The IBTB is mounted adjacent to the meter base or service entrance equipment and is a convenient way to interconnect and terminate grounding conductors from telephone, CATV or radio and television antennas. The IBTB includes corrosion-resistant, stainless steel mounting hardware and is easily accessible for connection and inspection. The lay-in connection clamp (#6 to #2 AWG or 16 to 35 sq-mm) allows easy installation of the grounding electrode conductor in one continuous length, where possible. The polymeric base and housing is impact-resistant, UV-stabilized and meets UL requirements for weatherability performance.
Unit: EA
UPC: 782856625452
Model Number: IBTB

Additional Information

  • Dimensions: 4 in L x 2.01 in W x 1.41 in D
  • Includes: Stainless Steel Mounting Hardware
  • Material: Polymer
  • Wire Size: 6 to 2 AWG Grounding Electrode Conductor 14 to 4 AWG Bonding Conductor


Application: For residential and small commercial facilities
