Eaton Wiring Devices  |  Our Item #: MORG9164450

Model Number: WDCSB415W-PDH - UPC : 032664737435

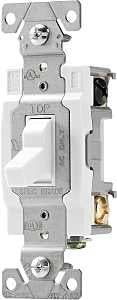

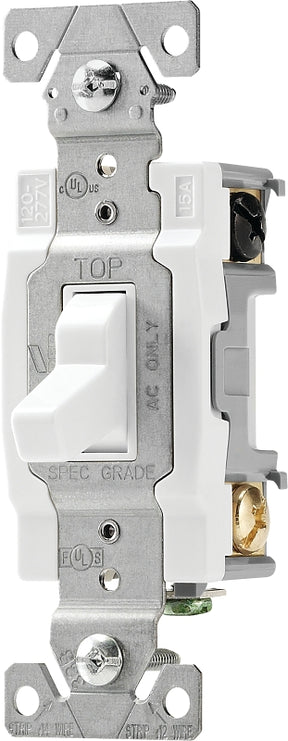

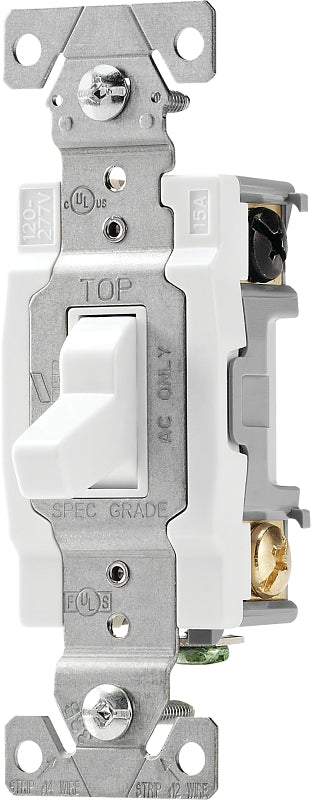

Eaton Wiring Devices CSB415W Switch, 15 A, 120/277 V, 4 -Position, Screw Terminal, Nylon Housing Material, White

$13.76 $19.55
Shipping calculated at checkout.
30% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Patent pending spring cup toggle design for robust actuation
  • Terminals accept up to #10 AWG solid or stranded
  • Terminal screws backed out-ready for wiring
  • Tri-combo head mounting and terminal screws ease installation
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections

Description
Small toggle switch blends with standard grade toggles. Larger contacts, backwire clamps on the side terminals. Side wire terminals accept up to number 10 solid wire. Back wire terminal accepts 12 ga or 14 ga wire. Heavy-duty cam action mechanism. Long, broad steel mounting strap, zinc-plated for corrosion resistance. Built-in wire stripper for #12 and #14 wire. Ground screw terminal, stippled line and ground contacts standard. Tri-combo head mounting and terminal screws. 15 A, 120/277 V. cULus listed, NOM certified.
Unit: EA
UPC: 032664737435
Model Number: WDCSB415W-PDH

Additional Information

  • Actuator Type: Toggle
  • Color: White
  • Contact Material: Silver
  • Current Rating: 15 A
  • Dielectric Strength: 1500 V
  • Housing Material: Nylon
  • Number Of Positions: 4
  • Temperature Rating: -20 to 60 deg C
  • Terminal Type: Screw
  • Voltage Rating: 120/277 V
  • Wattage Rating: 0.5 to 2 hp
