Eaton Wiring Devices  |  Our Item #: MORG9079930

Model Number: CR15W - UPC : 032664489037

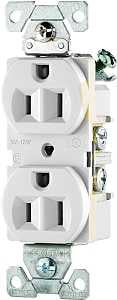

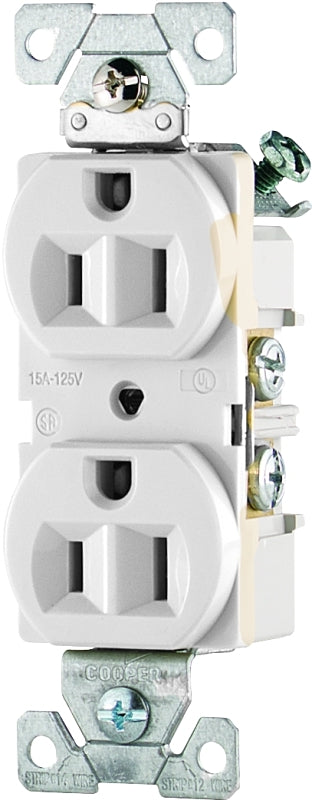

Eaton Cooper Wiring CR15W Duplex Receptacle, 2 -Pole, 15 A, 125 V, Side Wiring, NEMA: 5-15R, White

$2.39 $3.09
Shipping calculated at checkout.
23% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Sturdy, compact design meets the demands of commercial spec grade performance
  • Excellent plug blade retention provided by 0.032 in (0.81mm) triple-wipe brass line contacts and 0.050 in (1.27mm) brass ground
  • High impact-and chemical-resistant nylon face
  • 0.035 in galvanized steel, wraparound yoke mounting strap for great assembly security, extra length/width helps reach large panel cutouts for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw-Catch feature on duplex devices speeds mounting of wallplates

Description
Commercial specification-grade straight blade receptacles - 15 A-125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
Unit: EA
UPC: 032664489037
Model Number: CR15W

Additional Information

  • Color: White
  • Current Rating: 15 A
  • Dimensions: 4 in L x 1.24 in W x 0.79 in D
  • Frequency Rating: 60 Hz
  • Material: PVC
  • Mounting Type: Yoke
  • NEMA Configuration: 5-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -20 to 60 deg C
  • Voltage Rating: 125 V
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Side
