Eaton Wiring Devices  |  Our Item #: MORG8894933

Model Number: 15W47-K - UPC : 032664666919

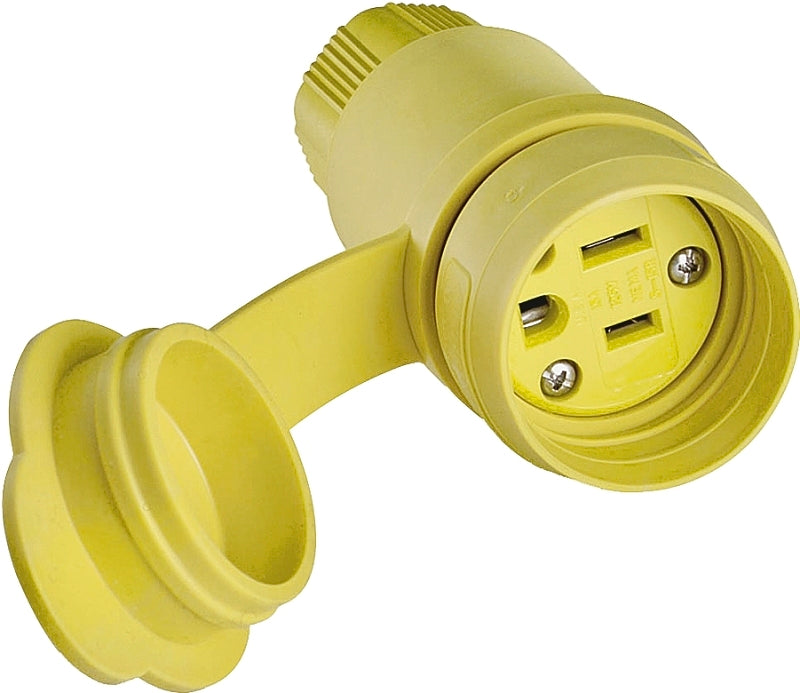

Eaton Wiring Devices 15W47-K Electrical Connector, 2 -Pole, 15 A, 125 V, IP66, NEMA: NEMA 5-15, Yellow

$28.85 $34.19
Shipping calculated at checkout.
16% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Thermoplastic elastomeric exteriors outperform rubber when exposed to moisture, chemicals, oils and the effects of ultraviolet radiation and ozone attack
  • Mated plug and connector form a watertight seal that meets the requirements of NEMA 3R, 4X, IEC IP67 and withstands water spray test at 800 psi
  • Connector supplied with closure cap for watertight seal when connector not in use, optional plug cap available
  • High visibility safety yellow for identification
  • Contacts, blades and terminal screws nickel plated for corrosion resistance
  • Quick drive, stainless steel assembly screws for fast installation
  • Color-coded neoprene grommets for a watertight seal on a wide range of cord sizes

Description
Used for marine applications in areas of water or moisture. Thermoplastic elastomeric (TPE) exterior. Glass filled nylon and glass filled polypropylene interior. 15 A, 125 V. Temperature rating of -40 to 70 deg C. Listed to UL 498 (file no.E3663) and watertight. NEMA 5-15.

Additional Information

  • Cable/Wire Size: 19/64 to 21/32 in
  • Color: Yellow
  • Current Rating: 15 A
  • Dimensions: 4 in L x 1.59 in W
  • Grounding Type: Grounded
  • IP Rating: IP66
  • Material: Thermoplastic
  • NEMA Configuration: NEMA 5-15
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -40 to 70 deg C
  • Type: Watertight
  • Voltage Rating: 125 V
