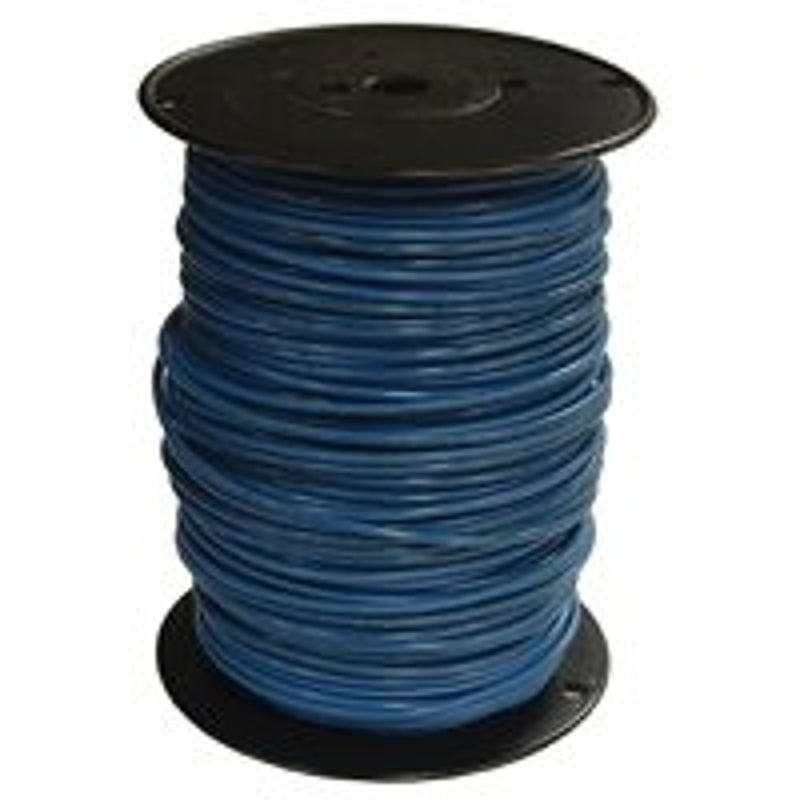

Southwire 10BLU-STRX500 Series Building Wire, Blue Sheath, 10 AWG Wire, 1-Conductor, Copper Conductor, Blue Sheath

Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 V. SIMpull THHN copper conductors are designed to be installed without application of a pulling lubricant.

• Conductor Insulation: Thermoplastic
• Conductor Material: Copper
• Current Rating: 30 A
• Length: 500 in
• Number of Conductors: 1
• Operating Temperature: 90 deg C
• Sheath Color: Blue
• Sheath Diameter: 161 mil
• Sheath Material: Nylon
• Stranded/Solid: Stranded
• Strands per Conductor: 19
• Voltage Rating: 600 V
• Wire Size: 10 AWG
