Eaton Wiring Devices  |  Our Item #: MORG7358385

Model Number: 7728W-SP - UPC : 032664664786

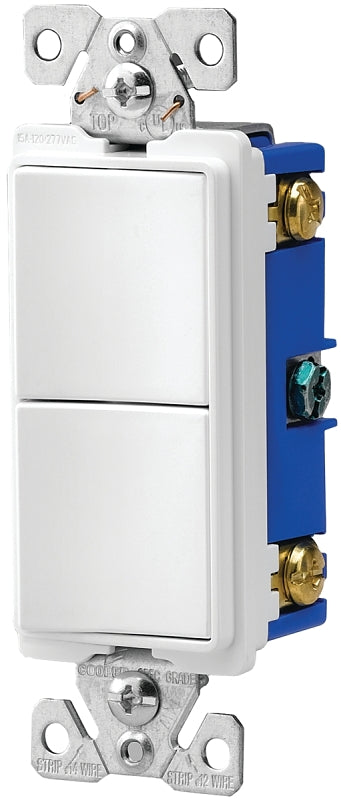

Eaton Wiring Devices 7700 Series 7728W-BOX Combination Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal

$14.80 $17.09
Shipping calculated at checkout.
13% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
  • Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
  • Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Break-off provision for wiring both devices on same circuit or on separate circuits
  • Decorator design features easy, smooth actuation of the rocker

Description
High-impact-resistant thermoplastic rocker, top and back body. Injection molded housings and PVC resin, comply with UL94 V0 flammability ratings. Tri-combo screw heads, built-in wire stripper. Backwire clamps on side terminals for installation of #12 and #14 wire. Terminal screws are backed out for easier and faster wiring. Thick (0.045 in/1.14 mm) steel mounting strap is zinc-plated. Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used. 120/277 VAC, 15 A rocker switches with break-off provision for wiring both devices on the same circuit or on separate circuits. UL, cUL listed and NOM 426 rated.

Additional Information

  • Color: White
  • Contact Configuration: SPST
  • Current Rating: 15 A
  • Dimensions: 4.19 in L x 1.3 in W x 1.08 in D
  • Housing Material: Thermoplastic
  • Mounting Type: Strap
  • Temperature Rating: -20 to 60 deg C
  • Terminal Type: Lead Wire
  • Voltage Rating: 120/277 V
