Eaton Wiring Devices | Our Item #:
MORG7193691
Model Number: AAL06-C2-K - UPC : 032664730856

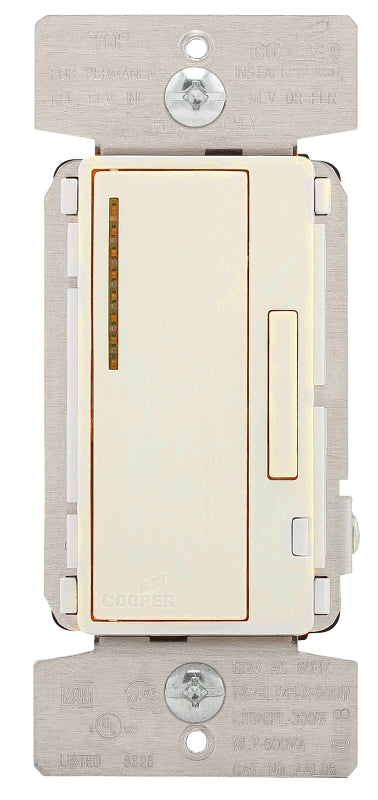

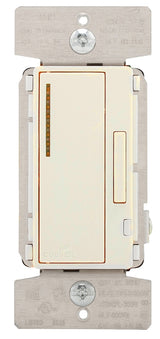

Eaton Wiring Devices AAL06-C2-K Smart Dimmer, 5 A, 120 V, 300 W, CFL, LED Lamp, 3-Way, Ivory/Light Almond/White
Sale price
$39.68
Regular price
$45.69
Unit price
Unavailable
Shipping calculated at checkout.
13% off
Eaton Wiring Devices AAL06-C2-K Smart Dimmer, 5 A, 120 V, 300 W, CFL, LED Lamp, 3-Way, Ivory/Light Almond/White is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton Wiring Devices AAL06-C2-K Smart Dimmer, 5 A, 120 V, 300 W, CF...
Sale price
$39.68
Regular price
$45.69
Unit price
Unavailable
Eaton Wiring Devices | Our Item #:
MORG7193691
Sale price
$39.68
Regular price
$45.69
Unit price
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices AAL06-C2-K Smart Dimmer, 5 A, 120 V, 300 W, CFL, LED Lamp, 3-Way, Ivory/Light Almond/White is backordered and will ship as soon as it is back in stock.
Features
- Electro-mechanical push pad for On/Off operation with separate dim/bright bar
- 10 secs delayed-off feature by pressing and holding push pad for 2 secs when dimmer is on
- Selectable rapid start feature to ensure lamp start-up at low preset light levels
- LED light level display for presetting illumination levels and master or accessory units for multi-location control
- Adjustable low-end and high-end trimming to prevent lamp flickering
- No de-rating required for CFL/LED in multi-gang installations
- Preset feature allows user to return to previous light setting when turning lights on
Description
Description
Replaces a standard switch. Provides smooth, full range digital dimming for incandescent, halogen, electronic low-voltage, magnetic low-voltage, dimmable LED/CFL and Fluorescent lighting. 300 W dimmable LED/CF, 600 W Incan/dimmable ELV/halogen/dimmable FLR 600 VA MLV, 120 VAC, 60 Hz requires neutral connection in wallbox. Ability to set min/max dimmer level for maximum compatibility with different loads. Rapid start feature which allows the light to come on instantly in the case of LED/CFL loads and the ability to disable that feature. One master dimmer works with up to five (5) accessory dimmers, Orgill Sku #339-6181. Tri-color packaging which provides one unit box with three color faceplates. cULus listed and NOM certified.
Additional Information
Additional Information
- Color: Ivory/Light Almond/White
- Control Type: ON/OFF Push Pad
- Current Rating: 5 A
- Dimensions: 2.4 in L x 3 in W x 4.4 in H
- Frequency Rating: 60 Hz
- Includes: Color Change Faceplate Kit
- Lamp Type: CFL LED
- Material: Polycarbonate
- Mounting Type: Flush
- Number of Poles: 1
- Operation Modes: 3-Way
- Start Type: Rapid
- Temperature Rating: 0 to 40 deg C
- Terminal Type: Lead Wire
- Voltage Rating: 120 V
- Wattage Rating: 300 W
