EATON WIRING DEVICES  |  Our Item #: MORG6842744

Model Number: 277V-SP-L - UPC : 032664161803

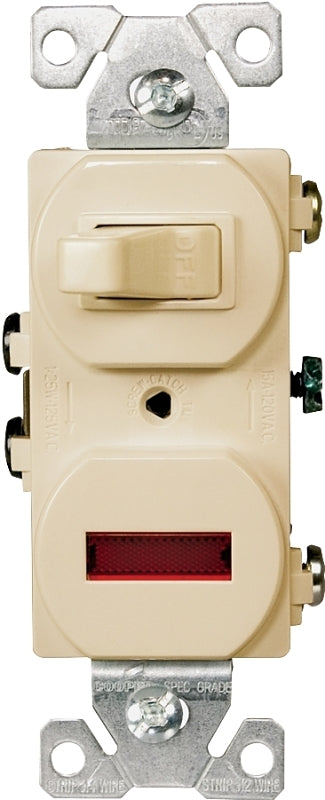

Eaton Wiring Devices 277V-BOX Combination Toggle Switch, 15 A, 120/277 V, Screw Terminal, Steel Housing Material, Ivory

$11.64 $14.35
Shipping calculated at checkout.
19% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Grounding terminal screw standard
  • Receptacles have triple wipe line contacts and double wipe ground contacts to insure long-term plug retention
  • Thick steel mounting strap is zinc-plated for corrosion resistance
  • Break-off provision for wiring both devices on same circuit or on separate circuits
  • Terminal screws backed out and ready for wiring
  • Pilot light may be wired to indicate power on or power off
  • Combination Phillips/slotted screw heads ensure faster installation

Description
Single pole side wire switch. Grounding terminal screw standard. 15 A, 120/277 V rating. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Terminal screws backed out ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Pilot light rating of 1/25 W - 120 V, may be wired to indicate power "on" or power "off". Combination slot/Phillips head mounting and terminal screws.
Unit: EA
UPC: 032664161803
Model Number: 277V-SP-L

Additional Information

  • Actuator Type: Toggle
  • Color: Ivory
  • Current Rating: 15 A
  • Dimensions: 3.28 in L x 1.375 in W x 0.95 in D
  • Housing Material: Steel
  • Mounting Type: Strap
  • Number of Poles: 1
  • Switch Operation: Back and Side
  • Temperature Rating: -40 to 65 deg C
  • Terminal Type: Screw
  • Voltage Rating: 120/277 V
