EATON WIRING DEVICES | Our Item #:
MORG6557912
Model Number: IG8300RN - UPC : 032664379604

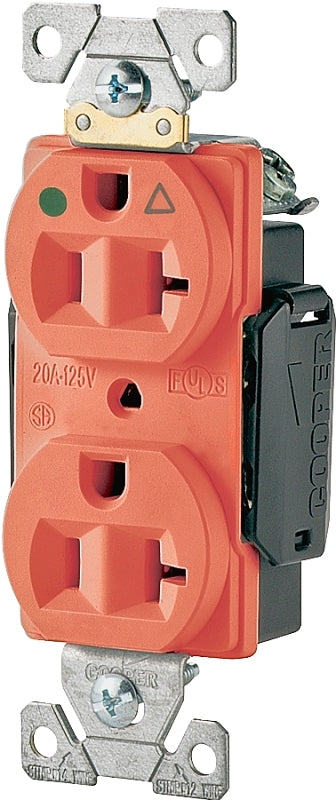

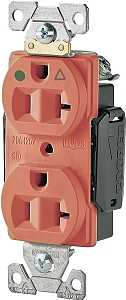

Eaton Cooper Wiring IG8300 IG8300RN Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R
Sale price
$12.80
Regular price
$17.85
Unit price
Unavailable
Shipping calculated at checkout.
28% off
Eaton Cooper Wiring IG8300 IG8300RN Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton Cooper Wiring IG8300 IG8300RN Duplex Receptacle, 2 -Pole, 20 ...
Sale price
$12.80
Regular price
$17.85
Unit price
Unavailable
EATON WIRING DEVICES | Our Item #:
MORG6557912
Sale price
$12.80
Regular price
$17.85
Unit price
Unavailable
Shipping calculated at checkout.
Eaton Cooper Wiring IG8300 IG8300RN Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R is backordered and will ship as soon as it is back in stock.
Features
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces (duplex only)
- Exclusive 5-leaf, brass line contacts provide consistent performance and great plug retention (duplex only)
- Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier (duplex only)
- High-impact- and chemical-resistant nylon face
- Tapered lead in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
Description
Description
Hospital specification-grade straight blade receptacles - isolated ground premium back wire & side wire. Arrow Hart's feature rich line of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.
Unit: EA
UPC: 032664379604
Model Number: IG8300RN
Unit: EA
UPC: 032664379604
Model Number: IG8300RN
Additional Information
Additional Information
- Color: Orange
- Current Rating: 20 A
- Dimensions: 4.19 in L x 1.3 in W x 0.89 in D
- Frequency Rating: 60 Hz
- Mounting Type: Board
- NEMA Configuration: 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 70 deg C
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
