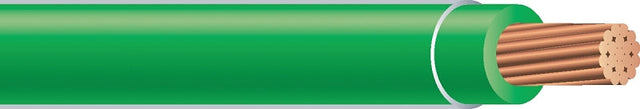

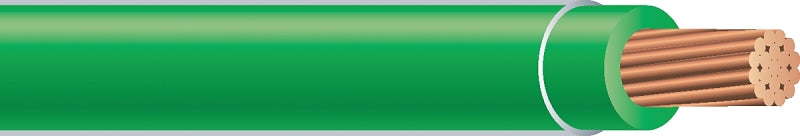

Southwire SIMpull 22968284 Building Wire, 12 AWG Wire, 1-Conductor, 100 ft L, Copper Conductor, PVC Insulation

Southwire SIMpull THHN copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture-resistant PVC insulation with an overall nylon jacket utilizing SIMpull technology.

• Conductor Insulation: PVC
• Conductor Material: Copper
• Length: 100
• Number of Conductors: 1
• Operating Temperature: 194 deg F
• Sheath Color: Green
• Sheath Diameter: 0.13 in
• Sheath Material: Nylon
• Stranded/Solid: Stranded
• Strands per Conductor: 19
• Type: THHN
• Voltage Rating: 600 VAC
• Wire Size: 12 AWG
