Eaton Wiring Devices  |  Our Item #: MORG6306708

Model Number: 1301-7V - UPC : 032664750885

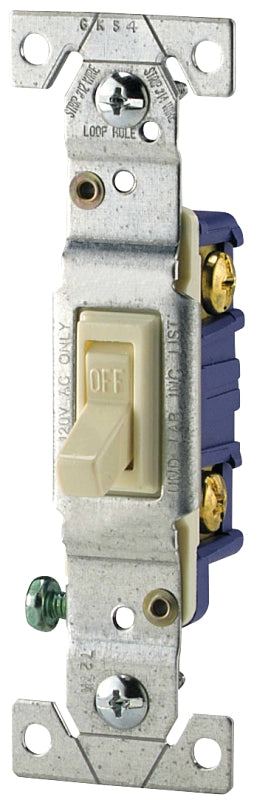

Eaton Wiring Devices 1301-7V Toggle Switch, 15 A, 120 V, Polycarbonate Housing Material, Ivory

$0.98 $1.19
Shipping calculated at checkout.
18% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Push-in terminals accept #14 AWG solid wire only, side wire terminals accept up to #10 AWG solid wire
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
  • Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
  • Wire looper speeds termination of both #14 and #12 AWG wire

Description
Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.

Additional Information

  • Actuator Type: Toggle
  • Color: Ivory
  • Current Rating: 15 A
  • Dielectric Strength: 1500 V
  • Dimensions: 4.2 in L x 1.3 in W x 1.103 in D
  • Housing Material: Polycarbonate
  • Mounting Type: Wall
  • Number of Poles: 1
  • Temperature Rating: -20 to 60 deg C
  • Voltage Rating: 120 V
  • Wattage Rating: 0.5 hp
