Eaton Wiring Devices  |  Our Item #: MORG6269393

Model Number: 5266AN - UPC : 032664519512

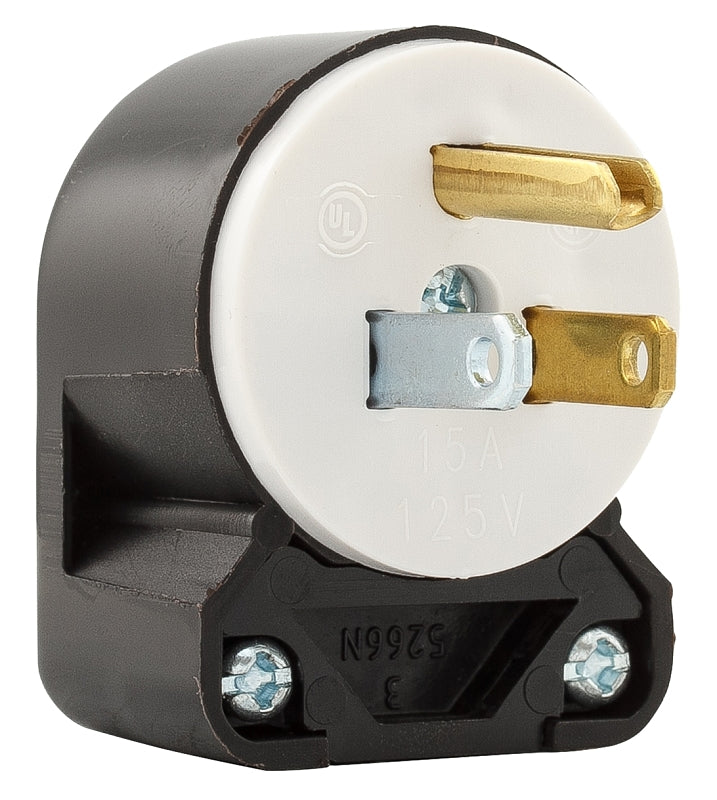

Eaton Wiring Devices 5266 Electrical Plug, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15, Black/White

$11.39 $15.45
Shipping calculated at checkout.
26% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • High impact-resistant thermoplastic housings with easy-grip grooves
  • Assembly screws are speed-threaded and captive, reducing installation time
  • Solid brass plug blades are firmly embedded in body
  • Terminals in individual chambers to positively insulate conductors
  • Clearly marked rating, NEMA configuration and standard compliances on face of device
  • Terminal screws backed out ready for wiring

Description
Industrial-grade. High impact-resistant thermoplastic housings with easy-grip grooves. Plated steel assembly screws are speed-threaded and captive, reducing installation time. Solid brass plug blades are firmly embedded in body. Clearly marked rating, NEMA configuration and standard compliances (third-party listing) on face of device. Color-coded clamps identify amperage - blue 15 A. Terminal screws backed out; ready for wiring. Combination slot/Phillips head terminal, assembly and clamping screws. Meets all 498 requirements. 15 A, 125 V. UL listed. NEMA 5-15.
Unit: EA
UPC: 032664519512
Model Number: 5266AN

Additional Information

  • Cable/Wire Size: 1/4 to 11/16 in
  • Color: Black/White
  • Current Rating: 15 A
  • Dimensions: 1.71 in L x 1.54 in W
  • Grounding Type: Grounded
  • Material: Thermoplastic
  • NEMA Configuration: NEMA 5-15
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -40 to 70 deg C
  • Type: Straight
  • Voltage Rating: 125 V
