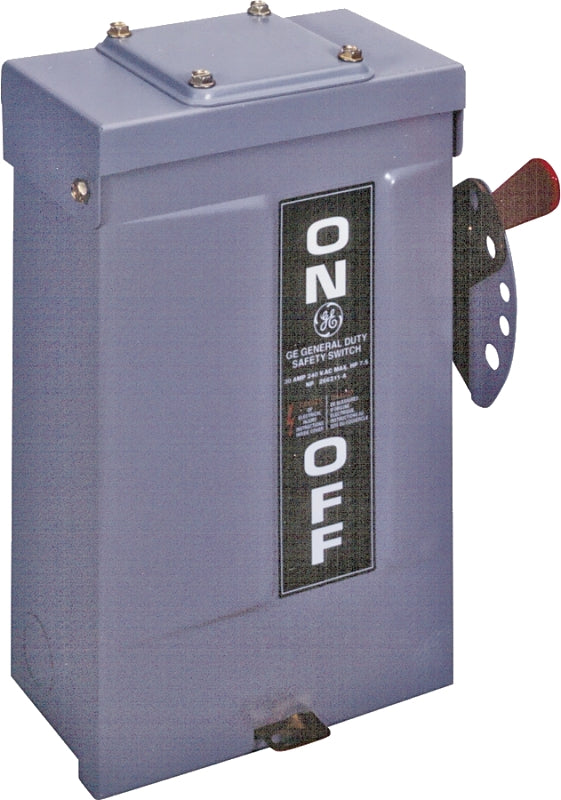

GE TG3221R Safety Switch, 2-Pole, 30 A, 240 V

Designed for residential or light commercial applications where duty is not severe. Meets or exceeds NEMA Enclosed Switch Standard KS1-1983 for type GD, CSA certified; 60 deg C/75 deg C conductor rating. Two pole, 120/240 VAC; 250 VDC. Removable closing cap. Accepts Class H fuses (not included). Feature quick make, quick break mechanism. Suitable for use as service entrance equipment when installed in accordance with National Electrical Code. 6-7/8 in x 9-7/8 in x 3-5/16 in. UL listed (Enclosed Switches No. 98).
Unit: EA
UPC: 783164008487
Model Number: TG3221R

• Current Rating: 30 A
• Height: 7.18 in
• Nema Rating: NEMA 3R
• Number of Poles: 2
• Number Of Wires: 3
• Short Circuit Rating: 10 kA
• Type: Fusible
• Voltage Rating: 240 V
• Width: 6-7/8 in
