EATON WIRING DEVICES  |  Our Item #: MORG6088942

Model Number: BR20V - UPC : 032664750731

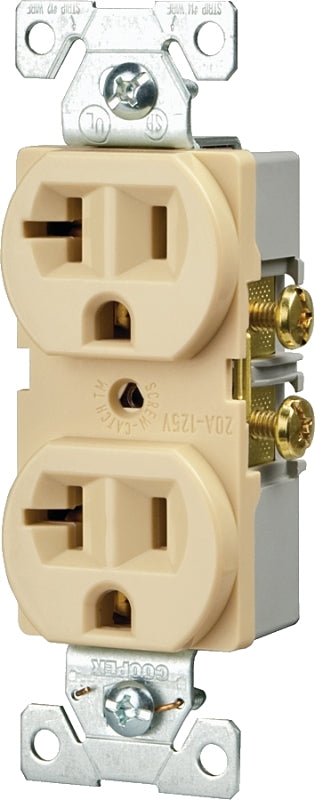

Eaton Wiring Devices BR20V Duplex Receptacle, Nylon, Ivory, 2-Pole, 20 A, 125 V, NEMA: 5-20R, 60 Hz

$4.30 $5.05
Shipping calculated at checkout.
15% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Galvanized steel, wraparound yoke mounting strap for great assembly security
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw-Catch feature on duplex devices speeds mounting of wallplates
  • Tamper-resistant receptacle provide compliance with 2017 NEC Article 406.12 that states that all 15 A and 20 A

Description
Commercial specification-grade straight blade receptacles - 15 A, 125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
Unit: EA
UPC: 032664750731
Model Number: BR20V

Additional Information

  • Color: Ivory
  • Current Rating: 20 A
  • Dimensions: 4.20 in L x 1.30 in W x 0.88 in D
  • Frequency Rating: 60 Hz
  • Material: Nylon
  • Mounting Type: Yoke
  • NEMA Configuration: 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -20 to 60 deg C
  • Voltage Rating: 125 V
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Back Side
