Eaton Wiring Devices  |  Our Item #: MORG6088785

Model Number: 276W-BOX - UPC : 032664161605

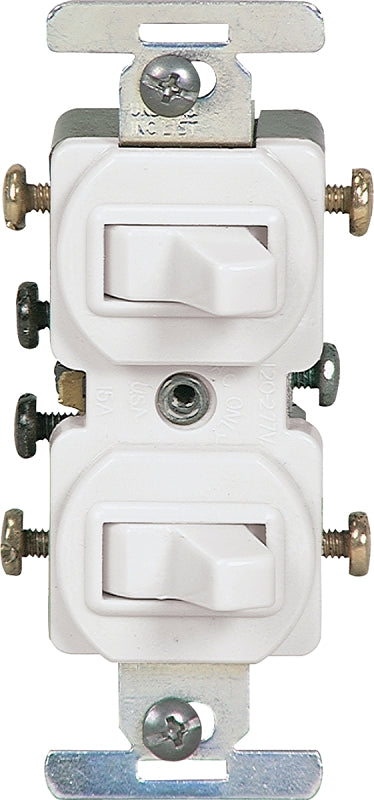

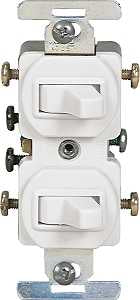

Eaton Wiring Devices 276W-BOX Series Combination Toggle Switch, White, 15 A, 120/277 V, Screw Terminal

$17.85 $24.69
Shipping calculated at checkout.
28% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Grounding terminal screw standard
  • Receptacles have triple wipe line contacts and double wipe ground contacts to insure long-term plug retention
  • Thick steel mounting strap is zinc-plated for corrosion resistance
  • Break-off provision for wiring both devices on same circuit or on separate circuits
  • Terminal screws backed out and ready for wiring
  • Pilot light may be wired to indicate power on or power off
  • Combination Phillips/slotted screw heads ensure faster installation

Description
Grounding terminal screw standard. Combination switch with additional switch has 120/277 V rating, ideal for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Break-off provision for wiring both devices on same circuit or on separate circuits. Terminal screws backed out and ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Combination slot/Phillips head mounting and terminal screws. Switches meet all UL 20 requirements. UL Listed.
Unit: EA
UPC: 032664161605
Model Number: 276W-BOX

Additional Information

  • Actuator Type: Toggle
  • Color: White
  • Current Rating: 15 A
  • Housing Material: Steel
  • Mounting Type: Strap
  • Number of Poles: 1
  • Switch Operation: Back and Side
  • Terminal Type: Screw
  • Voltage Rating: 120/277 V
