EATON WIRING DEVICES  |  Our Item #: MORG6088470

Model Number: 4509AN-BOX - UPC : 032664536854

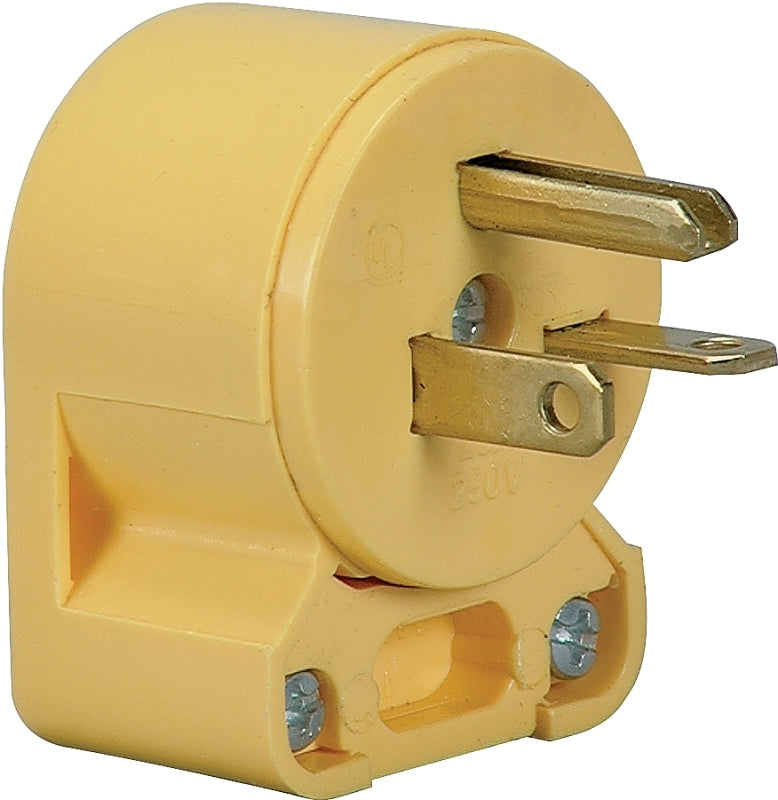

Eaton Wiring Devices 4509AN-BOX Electrical Plug, Angled, Straight Body, 1/4 to 21/32 in, 2-Pole, 20 A, 250 V, Yellow

$8.91 $13.49
Shipping calculated at checkout.
34% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Solid brass plug blades are firmly embedded in body
  • Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
  • Terminal screws backed out ready for wiring
  • Terminals in individual chambers to positively insulate conductors
  • Terminal screw clamps are designed to contain wire and prevent binding
  • Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
  • Vinyl angle plugs have eight possible positions for maximum convenience

Description
Solid brass plug blades are firmly embedded in body. Resists chemical attack and is less brittle in extremely low temperatures. With terminal screw clamps. Combination Slot/Phillips head mounting and terminal screws for installation flexibility (Slot/Robertson screws in Canada where available). Terminal screws backed out, ready for wiring. Yellow color. Meets all UL 498 requirements.
Unit: EA
UPC: 032664536854
Model Number: 4509AN-BOX

Additional Information

  • Cable/Wire Size: 1/4 to 21/32 in
  • Color: Yellow
  • Current Rating: 20 A
  • Dimensions: 1-61/64 in L x 1-1/2 in W x 1-27/64 in D
  • Grounding Type: Grounded
  • Material: Thermoplastic/Vinyl
  • Mounting Type: Screw
  • NEMA Configuration: NEMA 6-20
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -20 to 60 deg C
  • Type: Angled Straight Body
  • Voltage Rating: 250 V
