Eaton Wiring Devices  |  Our Item #: MORG6054753

Model Number: 4229-BOX - UPC : 032664333002

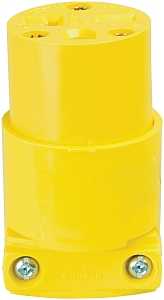

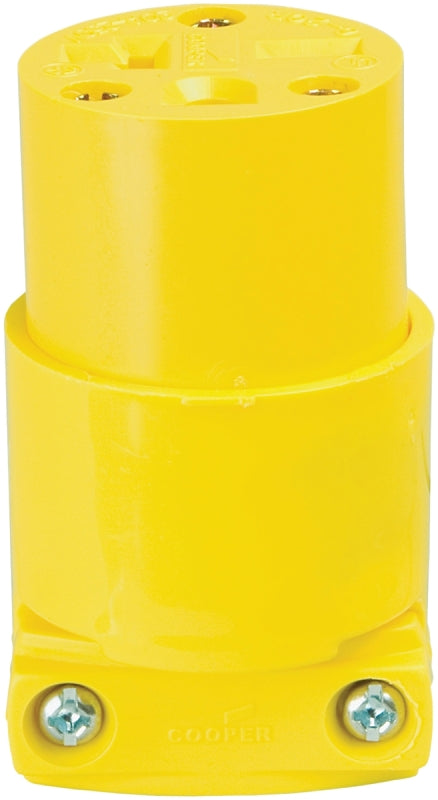

Eaton Wiring Devices 4229-BOX Armored Connector, 2 -Pole, 20 A, 250 VAC, Screw, NEMA: NEMA 6-15R, Yellow

$11.57 $15.69
Shipping calculated at checkout.
26% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
  • Terminal screws backed out ready for wiring
  • Terminals in individual chambers to positively insulate conductors
  • Terminal screw clamps are designed to contain wire and prevent binding
  • Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers

Description
Commercial-grade, thermoplastic vinyl connectors feature solid brass plug blades are firmly embedded in body. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out ready for wiring. Terminals in individual chambers to positively insulate conductors. Vinyl angle plugs have eight possible positions for maximum convenience. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers.
Unit: EA
UPC: 032664333002
Model Number: 4229-BOX

Additional Information

  • Cable/Wire Size: 18 to 12 AWG
  • Color: Yellow
  • Connection Type: Screw
  • Current Rating: 20 A
  • Dimensions: 1.54 in L x 1.54 in W x 2.61 in H
  • Grounding Type: Grounded
  • Material: Thermoplastic
  • NEMA Configuration: NEMA 6-15R
  • Number of Poles: 2
  • Number Of Wires: 2
  • Type: Straight Body
  • Voltage Rating: 250 VAC
