Eaton Wiring Devices  |  Our Item #: MORG5597844

Model Number: CS220W - UPC : 032664488405

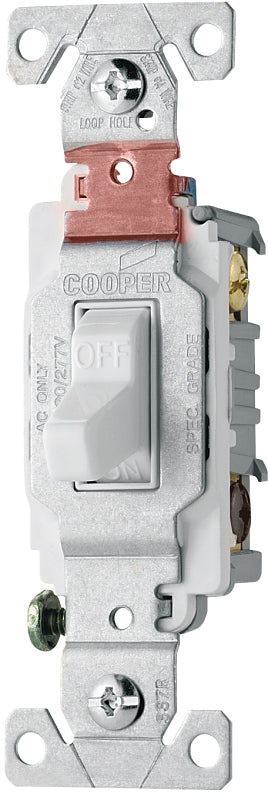

Eaton Wiring Devices CS220W Toggle Switch, 20 A, 120/277 V, Lead Wire Terminal, Nylon Housing Material, White

$8.28 $11.29
Shipping calculated at checkout.
27% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Patent pending spring cup toggle design for robust actuation
  • Terminals accept up to #10 AWG solid or stranded
  • Terminal screws backed out-ready for wiring
  • Tri-combo head mounting and terminal screws ease installation

Description
Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. 20 A, 120/277 V. Meets all UL 20 requirements, Federal Specifications WS 896.
Unit: EA
UPC: 032664488405
Model Number: CS220W

Additional Information

  • Actuator Type: Cam
  • Color: White
  • Contact Material: Silver
  • Current Rating: 20 A
  • Dielectric Strength: 1500 V
  • Housing Material: Nylon
  • Mounting Type: Wall
  • Number of Poles: 2
  • Temperature Rating: -20 to 60 deg C
  • Terminal Type: Lead Wire
  • Voltage Rating: 120/277 V
  • Wattage Rating: 1 to 2 hp


Application: For fluorescent lighting fixtures typical in commercial applications
