EATON WIRING DEVICES  |  Our Item #: MORG4170197

Model Number: 817V-BOX - UPC : 032664182402

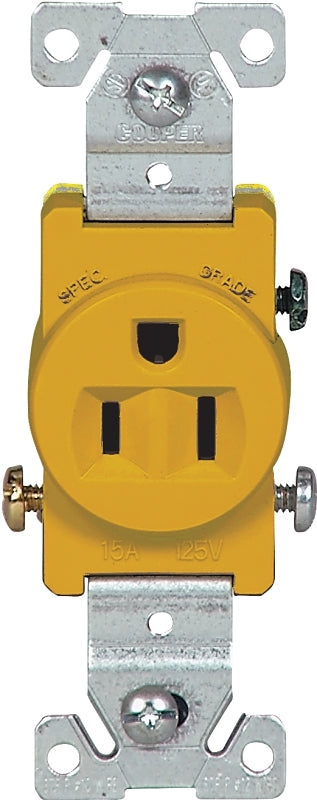

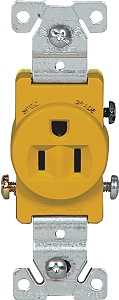

Eaton Wiring Devices 817V-BOX Single Receptacle, Flush Mounting, 2-Pole, 125 V, 15 A, Side Wiring

$4.73 $7.35
Shipping calculated at checkout.
36% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Galvanized steel, wraparound yoke mounting strap for excellent assembly security
  • Extra length or width helps reach large panel cutouts for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
  • Screw catch feature on duplex devices speeds mounting of wallplates

Description
Meets all UL 498 requirements. Triple wire line contacts provide excellent long-term plug retention. Arc-resistant thermostat face. Side wire terminals accept up to #10 solid or stranded wire. Terminal screws backed out. Tamper-resistant receptacles have a UL listed shutter system. cULus listed. 15 A, 125 V.
Unit: EA
UPC: 032664182402
Model Number: 817V-BOX

Additional Information

  • Color: Ivory
  • Current Rating: 15 A
  • Dimensions: 4.19 in L x 1.3 in W x 0.87 in D
  • Material: PVC
  • Mounting Type: Flush
  • NEMA Configuration: NEMA 5-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -4 to 140 deg F
  • Voltage Rating: 125 V
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Side
