Eaton Wiring Devices  |  Our Item #: MORG3405420

Model Number: CR20LA - UPC : 032664583162

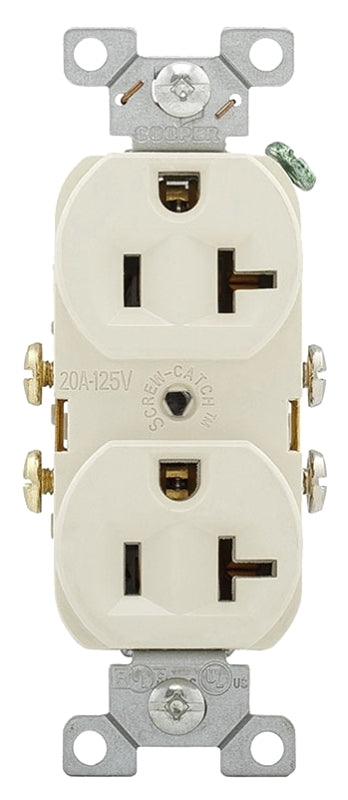

Eaton Wiring Devices CR20LA Duplex Receptacle Wallplate, 2 -Pole, 20 A, 125 V, Side Wiring, NEMA: 5-20R

$3.16 $4.49
Shipping calculated at checkout.
30% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw-catch feature on duplex devices speeds mounting of wallplates

Description
Commercial Specification Grade Straight Blade Receptacles, 20 A to 125 V, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
Unit: EA
UPC: 032664583162
Model Number: CR20LA

Additional Information

  • Color: Light Almond
  • Current Rating: 20 A
  • Dimensions: 1.24 in L x 0.79 in W x 4 in H
  • Material: PVC
  • Mounting Type: Flush
  • NEMA Configuration: 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -20 to 60 deg C
  • Voltage Rating: 125 V
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Side
