Eaton Wiring Devices | Our Item #:
MORG9651019
Model Number: 7501LA-BOX - UPC : 032664752384

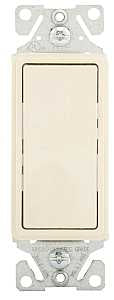

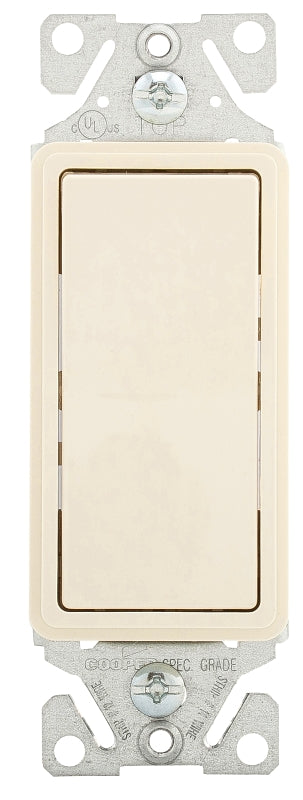

Eaton 7500 Series 7501LA-BOX Rocker Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, Thermoplastic Housing Material
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$3.04
Regular price
$3.55
Unit price
Unavailable
Shipping calculated at checkout.
14% off
Eaton 7500 Series 7501LA-BOX Rocker Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, Thermoplastic Housing Material is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton 7500 Series 7501LA-BOX Rocker Switch, 15 A, 120/277 V, SPST, ...
Sale price
$3.04
Regular price
$3.55
Unit price
Unavailable
Eaton Wiring Devices | Our Item #:
MORG9651019
Sale price
$3.04
Regular price
$3.55
Unit price
Unavailable
Shipping calculated at checkout.
Eaton 7500 Series 7501LA-BOX Rocker Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, Thermoplastic Housing Material is backordered and will ship as soon as it is back in stock.
Features
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
- Back wire clamps on side terminals provide for easy installation of #12 and 14 AWG wire
- Push-in terminals accept #14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
- Lighted switches glow in OFF position
- Redesigned paddle for easier actuation and quiet operation
Description
Description
Ultrasonic welding and integrated construction of the strap and body. Back wire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push-in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.
Unit: BX
UPC: 032664752384
Model Number: 7501LA-BOX
Unit: BX
UPC: 032664752384
Model Number: 7501LA-BOX
Additional Information
Additional Information
- Color: Light Almond
- Contact Configuration: SPST
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.44 in W x 0.97 in D
- Housing Material: Thermoplastic
- Includes: (1) Metal Strap
- Mounting Type: Strap
- Number of Poles: 1
- Temperature Rating: -20 to 60 deg C
- Terminal Type: Lead Wire
- Voltage Rating: 120/277 V
