Eaton Wiring Devices  |  Our Item #: MORG9647827

Model Number: TR7730W - UPC : 032664750281

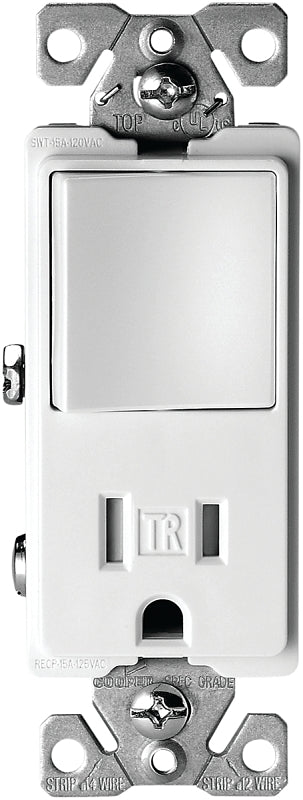

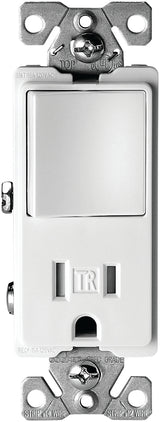

Eaton Cooper Wiring TR7730W Combination Switch/Receptacle, 1 -Pole, 15 A, 120/277 V, White

Get special pricing! Apply for a business account today.

Apply Now
$14.62 $19.09
Shipping calculated at checkout.
23% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire stripper speeds installation
  • Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Break-off provision for wiring both devices on the same circuit or on separate circuits
  • Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used

Description
Decorator heavy-duty-grade combination device features 15 A 120 V switch and tamper-resistant 15 A receptacle. Features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR7730 switch is horsepower-rated for motor loads per UL 20. Thermoplastic rocker, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
Unit: EA
UPC: 032664750281
Model Number: TR7730W

Additional Information

  • Color: White
  • Current Rating: 15 A
  • Dielectric Strength: 1500 V
  • Dimensions: 1.08 in D x 4.19 in H
  • Material: Thermoplastic
  • Mounting Type: Flush
  • Number of Poles: 1
  • Operating Temperature: -20 to 60 deg C
  • Terminal Type: Screw
  • Type: Heavy-Duty
  • Voltage Rating: 120/277 V
  • Wire Size: 14 to 12 AWG
  • Wiring Type: Back and Side
