Eaton Wiring Devices  |  Our Item #: MORG8508871

Model Number: TR274W - UPC : 032664750267

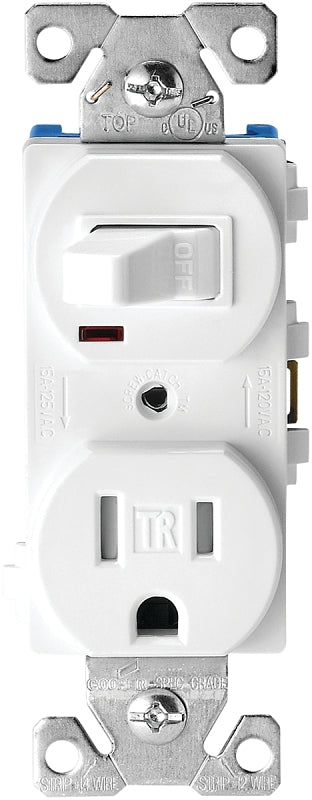

Eaton Cooper Wiring TR274W Combination Switch/Receptacle, 2 -Pole, 15 A, 120 V Switch, 125 V Receptacle, White

$11.34 $13.69
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire stripper speeds installation
  • Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Terminal screws are backed out and ready for wiring to enhance ease of installation
  • Break-off provision for wiring both devices on the same circuit or on separate circuits
  • Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used

Description
Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is On when switch is On. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
Unit: EA
UPC: 032664750267
Model Number: TR274W

Additional Information

  • Color: White
  • Contact Material: Brass
  • Current Rating: 15 A
  • Dielectric Strength: 2000 V
  • Dimensions: 1.08 in D x 4.19 in H
  • Material: PVC
  • Mounting Type: Flush
  • NEMA Configuration: NEMA 5-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -20 to 60 deg C
  • Terminal Type: Screw
  • Type: Heavy-Duty
  • Voltage Rating: 120 V Switch 125 V Receptacle
  • Wire Size: 14 to 12 AWG
  • Wiring Type: Back and Side


Application: For commercial applications
