Eaton Wiring Devices | Our Item #:
MORG4543310
Model Number: BP1723 - UPC : 032664125102

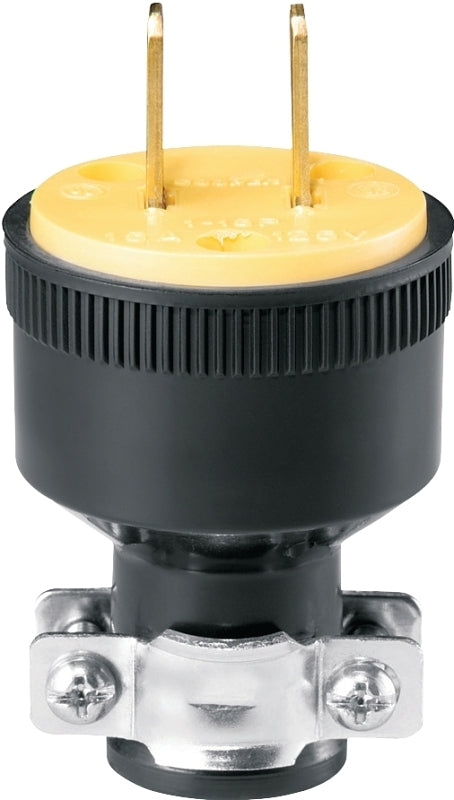

Eaton Wiring Devices BP1723 Electrical Plug, 2 -Pole, 15 A, 125 V, Slot, NEMA: NEMA 1-15, Black
$3.96
$5.99
Unit price
/
Unavailable
Shipping calculated at checkout.
34% off
Eaton Wiring Devices BP1723 Electrical Plug, 2 -Pole, 15 A, 125 V, Slot, NEMA: NEMA 1-15, Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton Wiring Devices BP1723 Electrical Plug, 2 -Pole, 15 A, 125 V, ...
$3.96
$5.99
Unit price
/
Unavailable
Features
- Solid brass plug blades are firmly embedded in body
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Armored housing automatically grounded
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Description
Description
Standard-grade. Plug blades are firmly embedded in body. Resists chemical attack and stays flexible in extremely low temperatures. Large handle with solid brass blades. Polypropylene, PVC and thermoplastic rubber. Meets flammability requirements per UL 94. 15 A, 125 V. -20 to 70 deg C. NEMA 1-15. Boxed.
Unit: EA
UPC: 032664125102
Model Number: BP1723
Unit: EA
UPC: 032664125102
Model Number: BP1723
Additional Information
Additional Information
- Cable/Wire Size: 1/4 to 21/32 in
- Color: Black
- Connection Type: Slot
- Current Rating: 15 A
- Grounding Type: Non-Grounded
- Material: Rubber
- NEMA Configuration: NEMA 1-15
- Number of Poles: 2
- Number Of Wires: 2
- Operating Temperature: -20 to 70 deg C
- Type: Straight
- Voltage Rating: 125 V
