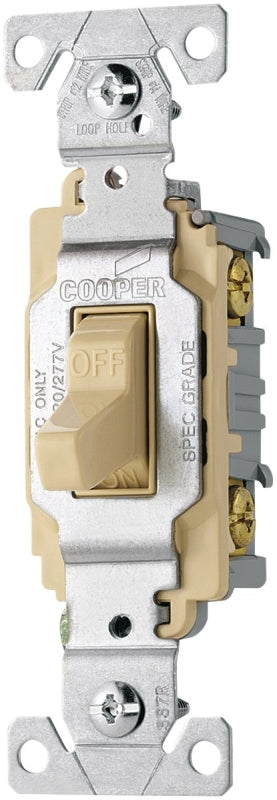

Eaton CS220V Switch, 20 A, 120/277 V, Screw Terminal, Nylon Housing Material, Ivory

Name: Eaton CS220V Switch, 20 A, 120/277 V, Screw Terminal, Nylon Housing Material, Ivory
Brand: Eaton Wiring Devices
SKU: MORG0801449
Price: 8.28 USD
Availability: InStock

Get special pricing! Apply for a business account today.

Apply Now

$8.28 $11.29

Shipping calculated at checkout.

27% off

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

Patent pending spring cup toggle design for robust actuation
Terminals accept up to #10 AWG solid or stranded
Terminal screws backed out ready for wiring
Tri-combo head mounting and terminal screws ease installation

Description

Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in THK steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. 20 A, 120/277 V. Meets all UL 20 requirements, Federal Specifications WS 896.
Unit: EA
UPC: 032664488351
Model Number: CS220V

Additional Information

Actuator Type: Cam Toggle
Color: Ivory
Wattage Rating: 1 to 2 hp
Current Rating: 20 A
Dielectric Strength: 1500 V
Contact Material: Silver
Housing Material: Nylon
Mounting Type: Wall
Number of Poles: 2
Temperature Rating: -20 to 60 deg C
Terminal Type: Screw
Voltage Rating: 120/277 V
Wattage Rating: 1 to 2 hp

Eaton CS220V Switch, 20 A, 120/277 V, Screw Terminal, Nylon Housing Material, Ivory
