Eaton Wiring Devices | Our Item #:
MORG0638320
Model Number: OS106D1-C2-K - UPC : 032664710384

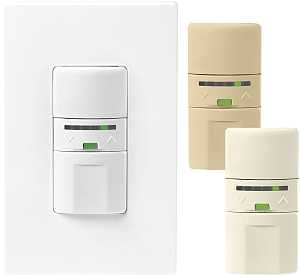

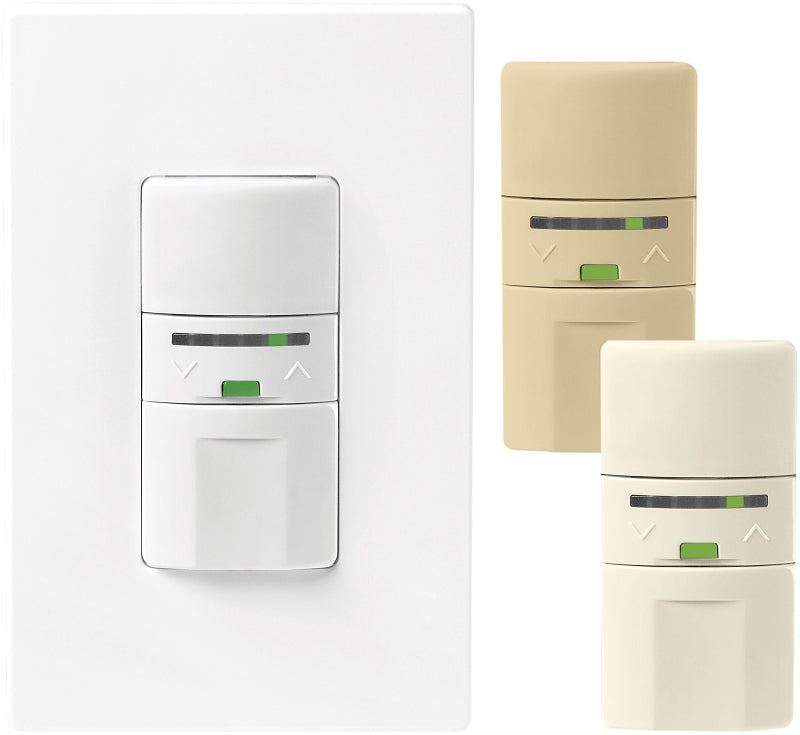

Eaton Wiring Devices OS106D1-C2-K Dimmer Sensor with LED, 120 V, 1-Pole, Motion Sensor, 180 deg Sensing
Get special pricing! Apply for a business account today.
Apply Now
Sale price
$61.43
Regular price
$72.75
Unit price
Unavailable
Shipping calculated at checkout.
16% off
Eaton Wiring Devices OS106D1-C2-K Dimmer Sensor with LED, 120 V, 1-Pole, Motion Sensor, 180 deg Sensing is backordered and will ship as soon as it is back in stock.
Shipping Policy
Shipping Policy
Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.
Eaton Wiring Devices OS106D1-C2-K Dimmer Sensor with LED, 120 V, 1-...
Sale price
$61.43
Regular price
$72.75
Unit price
Unavailable
Eaton Wiring Devices | Our Item #:
MORG0638320
Sale price
$61.43
Regular price
$72.75
Unit price
Unavailable
Shipping calculated at checkout.
Eaton Wiring Devices OS106D1-C2-K Dimmer Sensor with LED, 120 V, 1-Pole, Motion Sensor, 180 deg Sensing is backordered and will ship as soon as it is back in stock.
Features
- Full-range preset dimming control provided with horizontal dim/bright bar
- Digital circuitry provides aesthetically pleasing soft-On/fade-Off that extends bulb life
- Single green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
- Selectable ambient light override when there is acceptable natural light
- Bypass feature to allows the sensor to perform as a traditional switch
- Soft ON/fade OFF
- Preset and light level change is easily shown with horizontal row of green LEDs
- Push pad design provides minimal travel and crisp actuation
- Provides 180 deg field of view and 1000 sq-ft of major motion coverage
- Selectable time delay of 5 secs (test), 5 mins, 15 mins and 30 mins for lights to remain on after room is vacated
Description
Description
Occupancy/vacancy sensors use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy sensors provide Auto-On/Auto-Off or Manual-On/Auto-Off operation while vacancy sensors provide Manual-On/Auto-Off operation only. The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses. Built-in dimmer provides preset full-range dimming of light load. A horizontal dim/bright bar with row of green LEDs provide intuitive control. Both versions provide 1-pole (single-location) wiring and work with incandescent and magnetic low-voltage lighting load types. All sensors are compatible with any decorator-style or decorator screwless wallplate.
Additional Information
Additional Information
- Connection Type: Wire
- Frequency Rating: 60 Hz
- Includes: Mid-Size Decorator Wallplate
- Lamp Type: Halogen Incandescent
- Material: Polycarbonate
- Number of Poles: 1
- Sensing Angle: 180 deg
- Sensing Range: 1000 sq-ft
- Sensor Type: Motion
- Temperature Rating: 0 to 40 deg C
- Timer Range: 30 s to 30 min
- Type: Motion Activated
- Voltage Rating: 120 V
- Wattage Rating: 600 W
