Cutler-Hammer  |  Our Item #: MORG6075436

Model Number: CH2L70SP - UPC : 782114190449

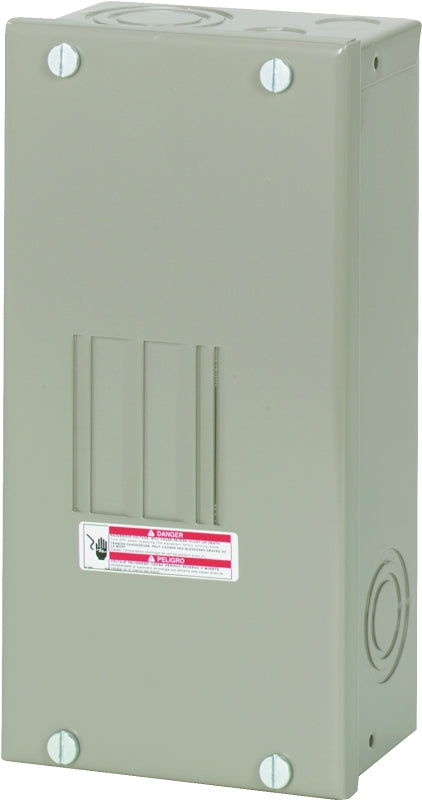

Cutler-Hammer CH CH2L70SP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Surface Mounting

$31.57 $36.39
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • Panels are supplied with split insulated neutrals with an insulated cross strap
  • For service entrance applications, the neutral must be bonded by using the bonding strap supplied with the panel
  • For service entrance applications, all that is required to bond the neutral is to loosen the bonding screw and the neutral screw directly beside it, insert the bonding strap into the neutral bar and retighten both connections

Description
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Unit: EA

MPN: CH2L70SP

UPC: 782114190449

Additional Information

  • Breaker/Load Center Type: Main Lug
  • Bus Bar Material: Copper
  • Cable Size: 14 to 2 AWG
  • Current Rating: 70 A
  • Enclosure Type: NEMA 1
  • Interrupt Rating: 10 kA
  • Mounting Type: Surface
  • Number of Circuits: 4
  • Number of Phases: 1
  • Number Of Spaces: 2
  • Voltage Rating: 120/240 V
  • Wiring Configuration: 3-Wire
