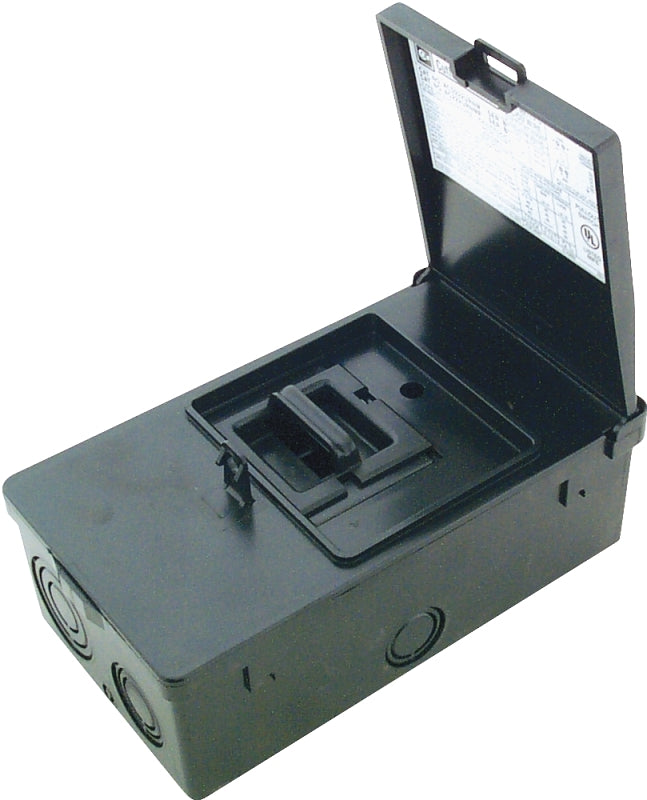

Cutler-Hammer AC AC222URNMP-A2 Disconnect Switch, 60 A, 120/240 V

Single phase, 2 pole, 2 wire, 240 VAC. Rated 3 hp at 120 V, 10 hp at 240 V. For top and bottom entry and exit, with provision for type H conduit hub. Heavy-duty, high strength, rugged polymer enclosure with UV-resistant features. Swing-up cover remains in place when in open position, protective shield can be removed for access to fuses. No GB4 ground bar and No 360-011-24 pullout head replacement sold separately. #14-2 AWG wire range. 5 in x 8-5/8 in x 3-1/2 in. UL listed file No E5239.

Unit: EA

MPN: AC222URNMP-A2

UPC: 786676406154

• Current Rating: 60 A
• Enclosure Material: Polycarbonate
• Height: 4.42 in
• HP Rating: 10 hp
• Length: 8.63 in
• Nema Rating: NEMA 3R
• Number of Phases: 1
• Number of Poles: 2
• Number Of Wires: 2
• Type: Non-Fused Pullout
• Voltage Rating: 120/240 V
• Wattage Rating: 14400 W
• Width: 5 in
