Cobra Anchors  |  Our Item #: MORG8728321

Model Number: 503N - UPC : 058060017087

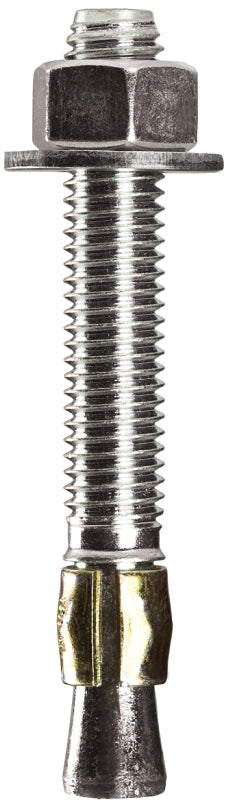

Cobra Anchors 503N Wedge Anchor, 1/2 in Dia, 5-1/2 in L, 1654 lb, Steel, Plated

$5.47 $8.39
Shipping calculated at checkout.

Shipping Policy

Item ships in 1 to 2 business days. Choose your shipping option during checkout. Read our Shipping Policy and Return Policy.

Features

  • A taper shaped mandrel neck for a smoother expansion
  • A 360 deg parabolic clip for more contact thus stronger
  • Can be installed into bottomless hole
  • Cold formed for increased strength

Description
The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic shaped taper mandrel neck at the opposite end for a smoother expansion. It has a 360 deg clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.
Unit: BAG
UPC: 058060017087
Model Number: 503N

Additional Information

  • Diameter: 1/2 in
  • Drill Size: 1/2 in
  • Finish: Plated
  • Length: 5-1/2 in
  • Material: Steel
  • Minimum Embedment Depth: 4-1/8 in
  • Shear Strength: 6543 lb
  • Tensile Strength: 7704 lb
  • Thread Length: 3-1/4 in
  • Weight Capacity: 1654 lb


Application: For architectural facades, ornamental fixtures, railings, satellite dishes and signs

Cobra Anchors

Cobra Anchors 503N Wedge Anchor, 1/2 in Dia, 5-1/2 in L, 1654 lb, Steel, Plated

$5.47 $8.39
The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic shaped taper mandrel neck at the opposite end for a smoother expansion. It has a 360 deg clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.
